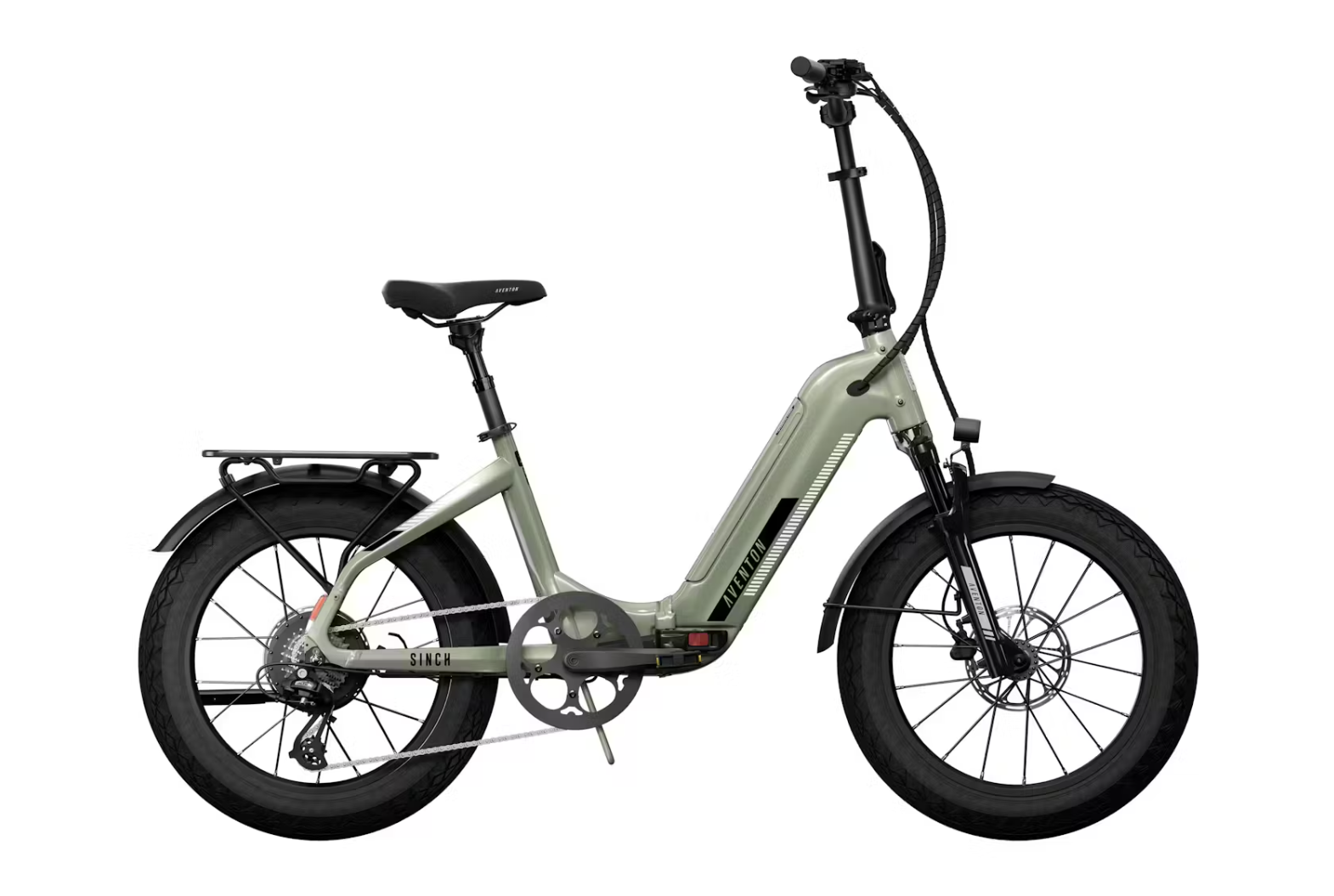

Sinch.2.5 Ebike

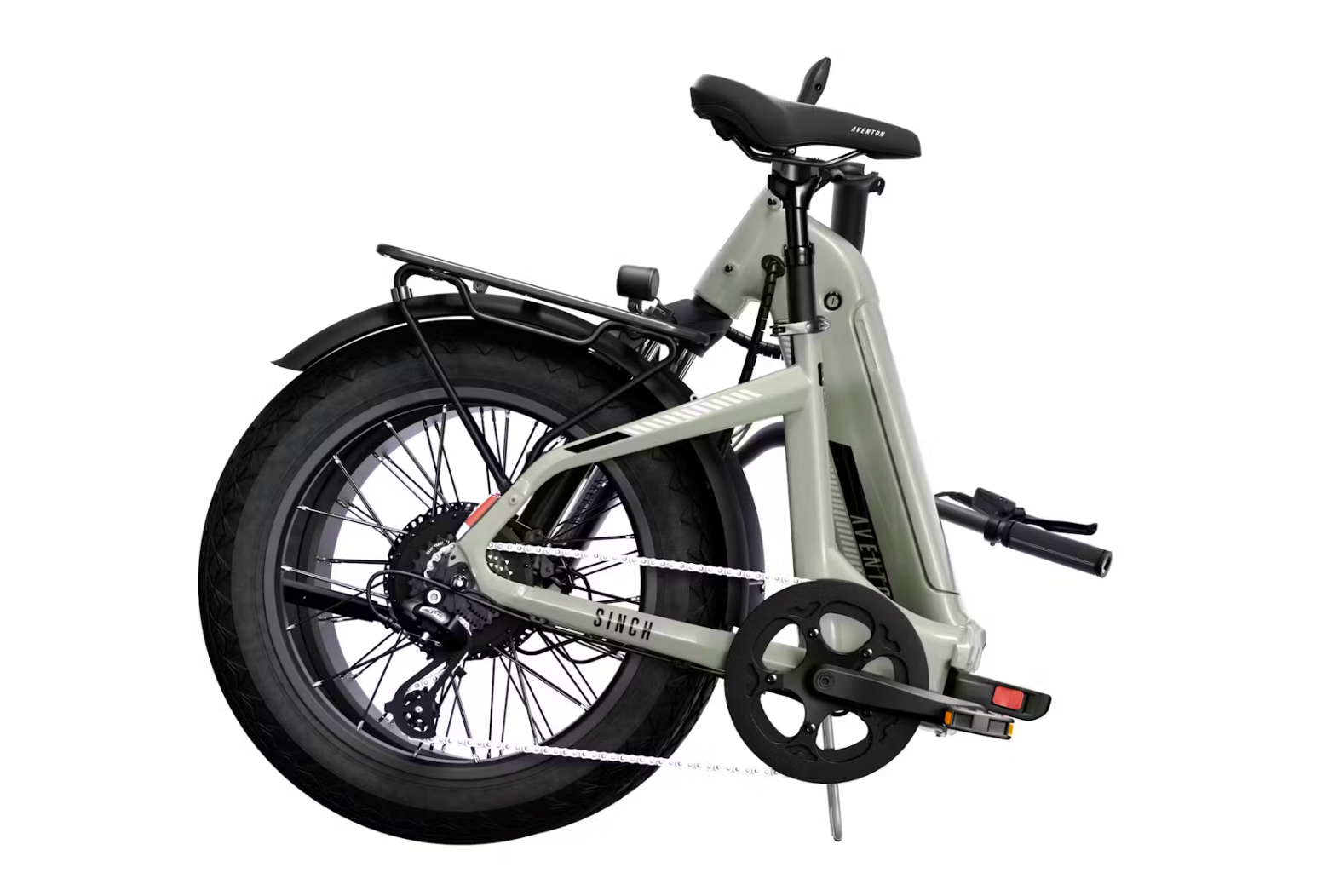

Foldable, portable, and easy to hop on.



  • General Info

    Model

    Sinch 2.5 Ebike

    Weight

    68 lbs

    Total Weight Limit

    300 lbs

    Rider Height

    4'11" - 6'2"

    Box Size

    43 x 24 x 33

    Ebike Class

    Class 2 Ebike

    Safety Certifications

    UL and TUV Safety Certified
UL 2849 / UL 2271

    Battery Safety Certifications

    Certified to UL 2271

    Range

    Up to 55 Miles

    Pedal Assist

    4 Levels

    Ideal Use

    All-Terrain

    Water Resistance

    IPX5

    Frameset

    Frame

    6061 Single-Butted Folding Aluminum Alloy with Internal Battery

    Fork

    Aventon coil fork with lock out and black stanchions.

    Rear Spacing

    177mm

    Fork Spacing

    135mm

    Frame Style

    Step-Through

    Wheelset

    Front Wheel

    20x4", 36-spoke, double-wall aluminum fat tire rim, black finish, with a nutted axle, 13g stainless steel spokes (173mm NDS/175mm DS), 135mm spacing, Schrader valve.

    Rear Wheel

    20x4", 36-spoke, double-wall aluminum fat tire rim, black finish, hub drive motor with a nutted axle, 12g stainless steel spokes (128mm NDS/127mm DS), 177mm spacing, Schrader valve.

    Tires

    Innova IA-2579 20x4.0

    Ebike System

    Speed

    Class 2

    Motor

    Motor: 48v, 500w sustained, 1056w peak brushless hub motor

    Motor Torque

    60Nm

    Display

    Aventon BC147

    Battery

    Removable Internal Lithium-ion Battery, 48.8V, 14Ah (636.4Wh)

    Battery Weight

    7.6 lbs

    Controller

    48v 22A

    Throttle

    Aventon LH Handlebar Mounted

    Sensors

    Double Sided Bottom Bracket Torque Sensor

    Charger

    48V, 3 Amp Fast Charger

    Charging time from 0% to 100%

    4-5 Hours

    Lights

    Front and rear lights integrated

    Brakes

    Front Brake Rotor

    180mm 6 bolt

    Rear Brake Rotor

    180mm 6 bolt

    Front Brake

    Tektro HD-T280 Hydraulic disc brake w/o e-cutoff

    Rear Brake

    Tektro HD-T280 Hydraulic disc brake w/o e-cutoff

    Drivetrain

    Rear Derailleur

    Shimano Altus RD-M310 8 Speed

    Chain

    114 Link, 8 Speed

    Cassette

    12-32T / 8 Speed Shimano CS HG200-8

    Chainring BCD

    130

    Crankset

    3pc, 170mm crank arm

    Bottom Bracket

    Square Taper, Sealed, Dual-Sided Torque Sensor, 100x159.5mm

    Pedals

    9/16" Composite folding pedals

    Chainring

    48T

    Cockpit

    Seatpost

    Aventon Suspension Seatpost, 30.9, 350mm Length

    Seat Clamp

    34.9mm Quick Release

    Grips

    Aventon glue on grips

    Headset

    Sealed Bearing Headset ZS44/28.6| ZS55/40

    Saddle

    Aventon Saddle

    Handlebars

    Aluminum, 31.8mm diameter, 620mm width
