Model

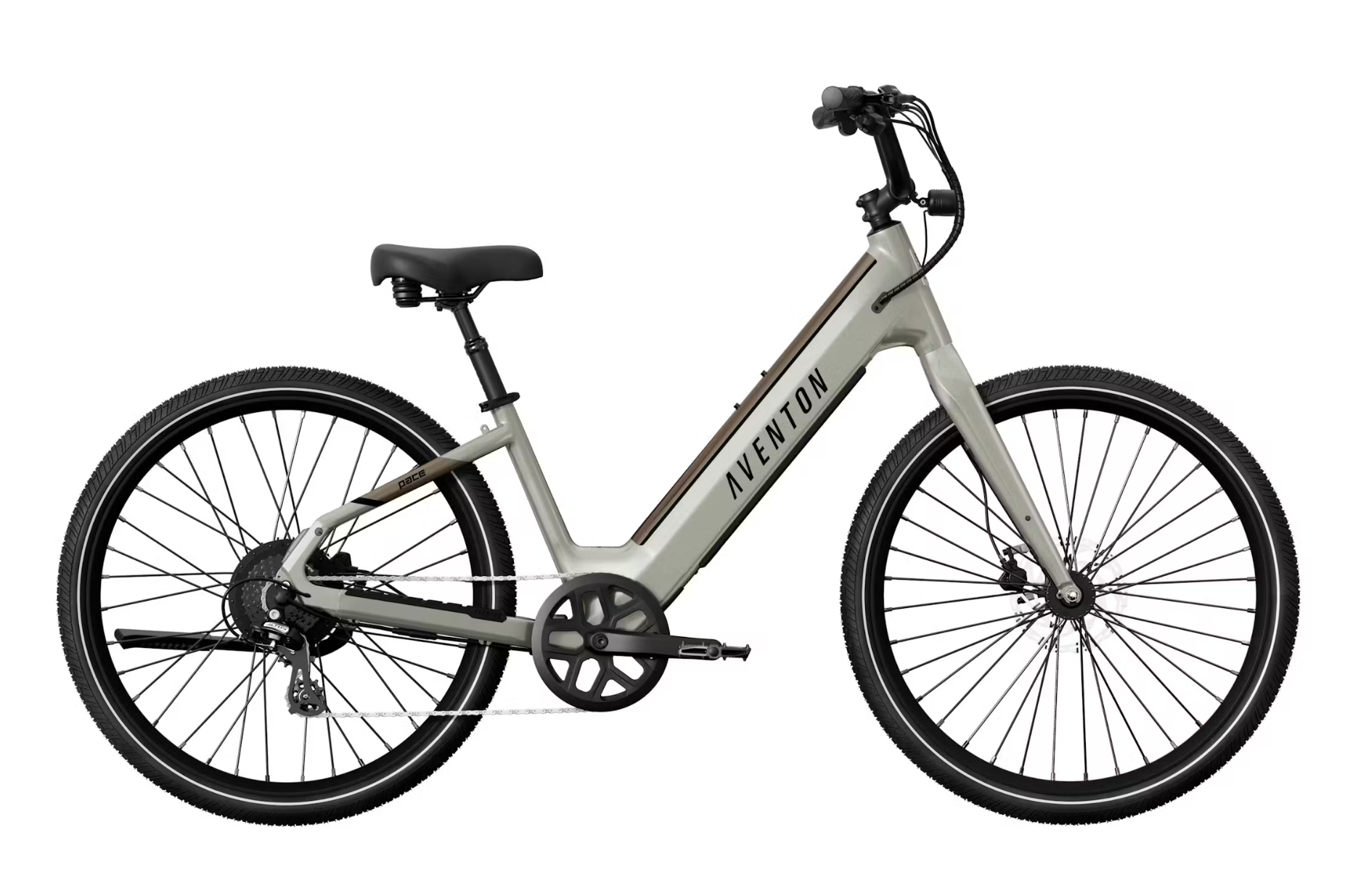

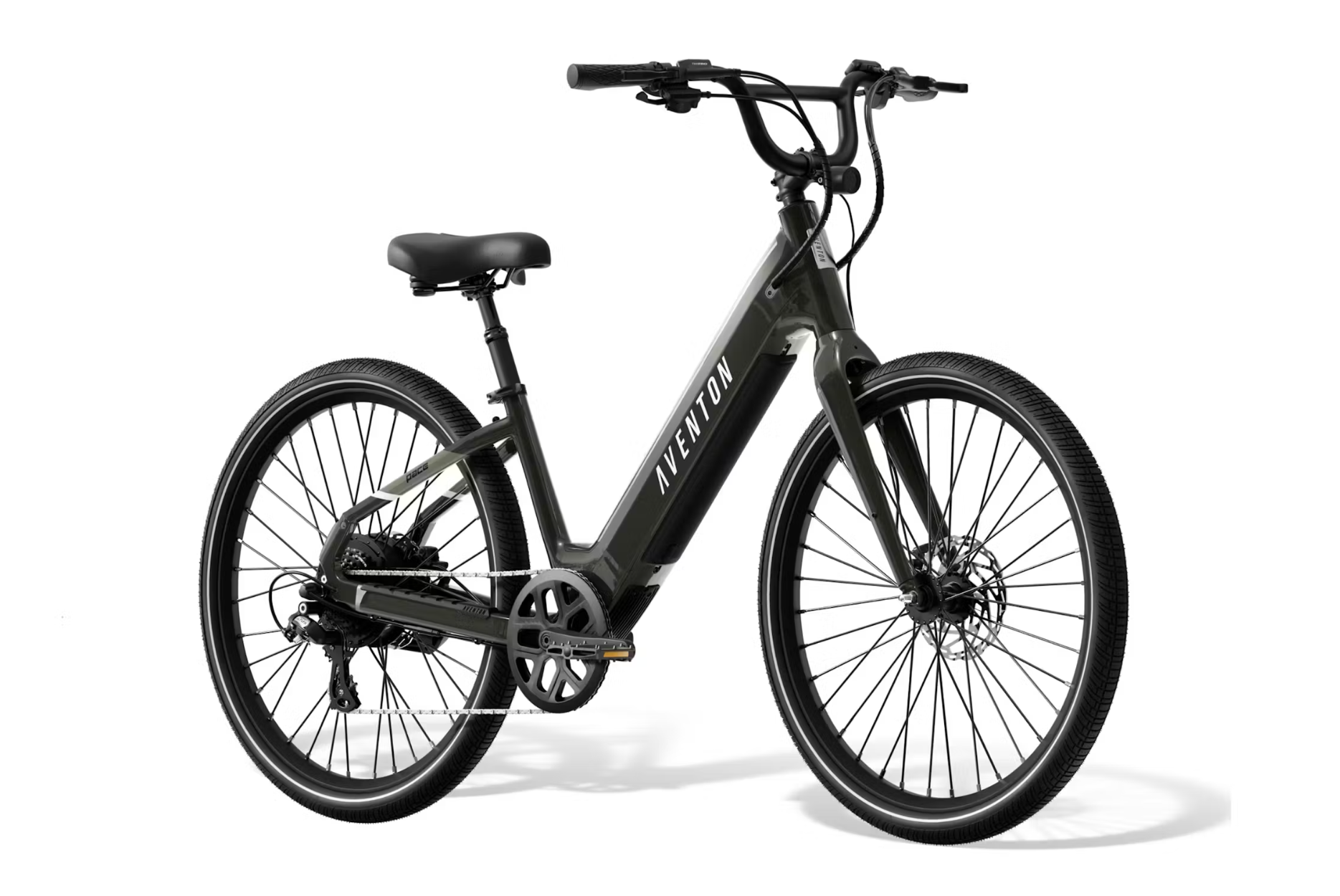

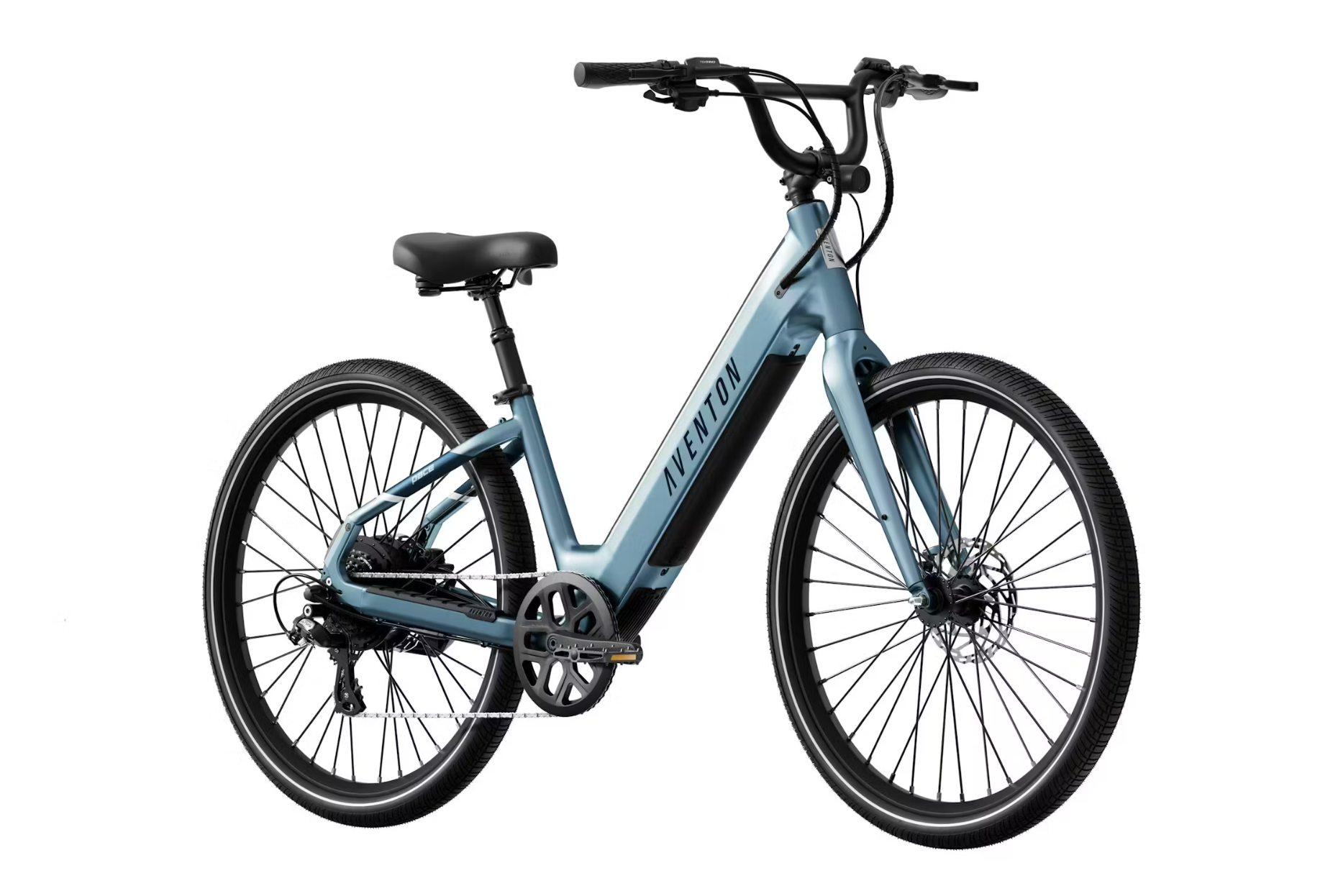

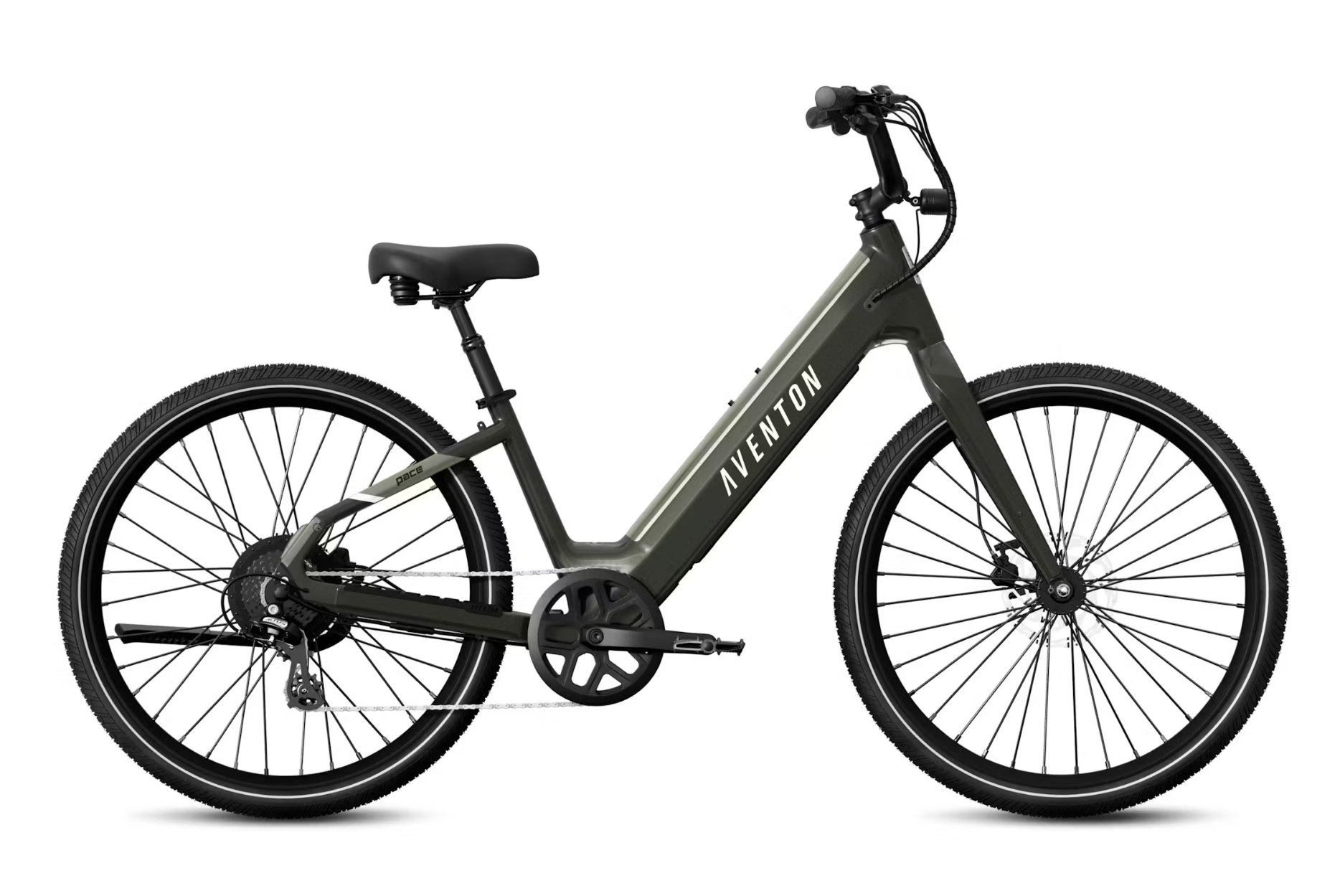

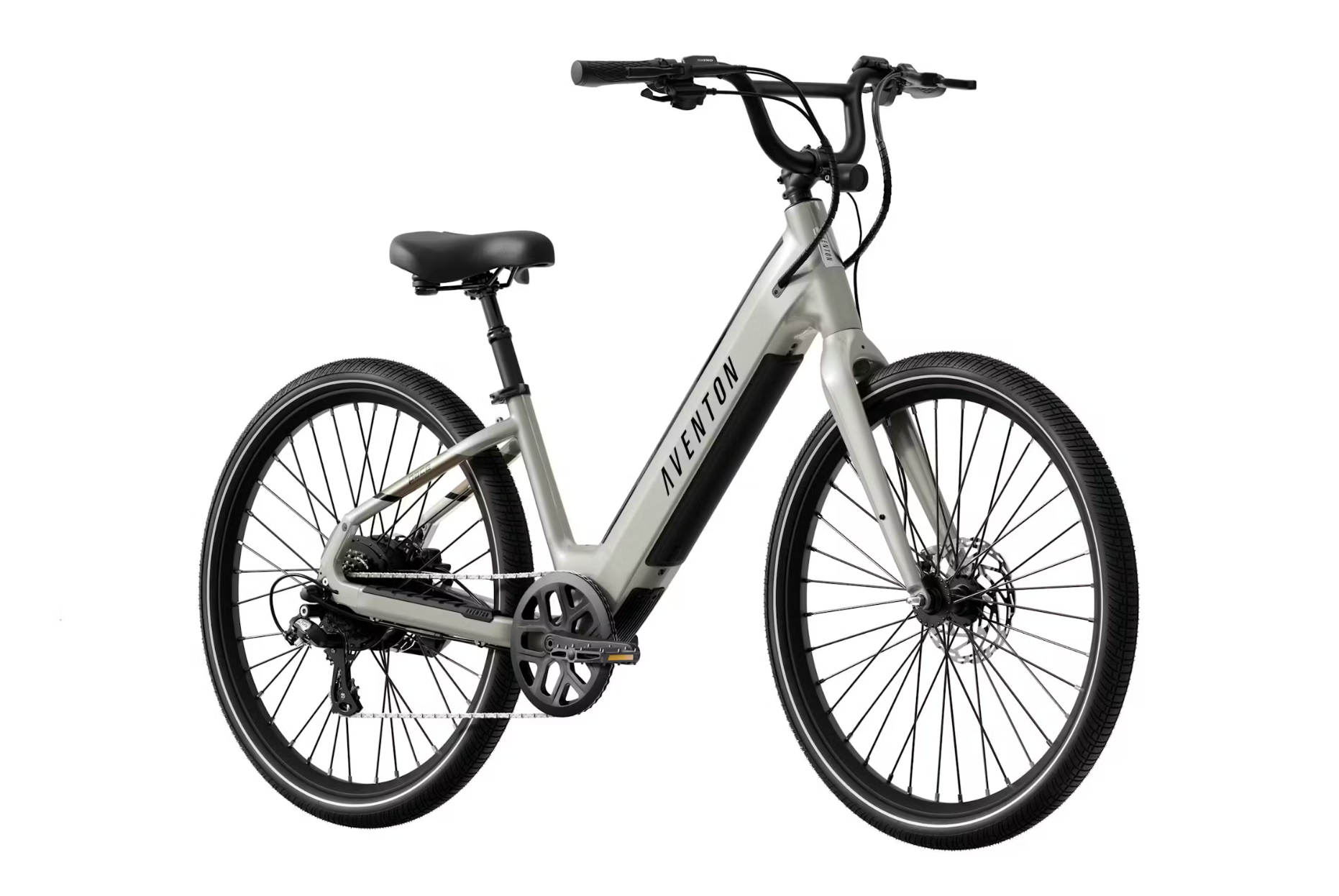

Pace 4 Step-Through Ebike

Weight

58.2 lbs

Total Weight Limit

300 lbs

Rider Height

R: 4'11" -5'7" | L: 5'7" - 6'1"

Range

Up to 70 Miles

Ebike Class

Class 2 (Can be converted to Class 3 if local laws and regulations allow)

Battery Safety Certifications

Certified to UL 2271

Bike Safety Certifications

UL Safety Certified
UL 2849

Ideal Use

Cruising

Water Resistance

Bike - IPX5 // Components - IPX6

Frameset

Frame

6061 Aluminum, Gravity Cast Front Triangle

Fork

Rigid Aluminum Fork

Rear Spacing

142mm

Fork Spacing

100mm

Wheelset

Front Wheel

27.5", 36 hole, Nutted axle, Schrader Valve

Rear Wheel

27.5", 36 hole, Nutted hub drive motor, Schrader Valve

Tires

27.5" x 2.1"

Ebike System

Motor

36v, 500W

Motor Torque

60Nm

Motor Power

500W

Display

Aventon BC147

Battery

Removable Internal Lithium-ion. 36V, 20Ah, 733Wh, LG 21700 cells

Battery Weight

8.7lbs

Controller

36V, 24A

Throttle

Aventon LH Handlebar Mounted

Sensors

Double Sided Bottom Bracket Torque Sensor

Charger

36V Output: 42V/ 4A

Charging time from 0% to 100%

5 hours

Lights

Front and rear lights integrated

Brakes

Front Brake

Tektro Hydraulic w/ E-Cutoff

Rear Brake

Tektro Hydraulic w/ E-Cutoff

Front Brake Rotor

180mm 6 bolt

Rear Brake Rotor

180mm 6 bolt

Drivetrain

Rear Derailleur

Shimano Altus 8-Speed

Shifter

Shimano 8-Speed Trigger

Chain

7/8 speed 122L

Cassette

12-32T / 8 Speed Shimano CS HG200-8

Chainring

48T

Chainring BCD

N/A

Crankset

3pc, 170mm crank arm

Bottom Bracket

Square Taper, Sealed, double sided Torque Sensor 83mmx158.5mm

Pedals

9/16" Composite Platform
