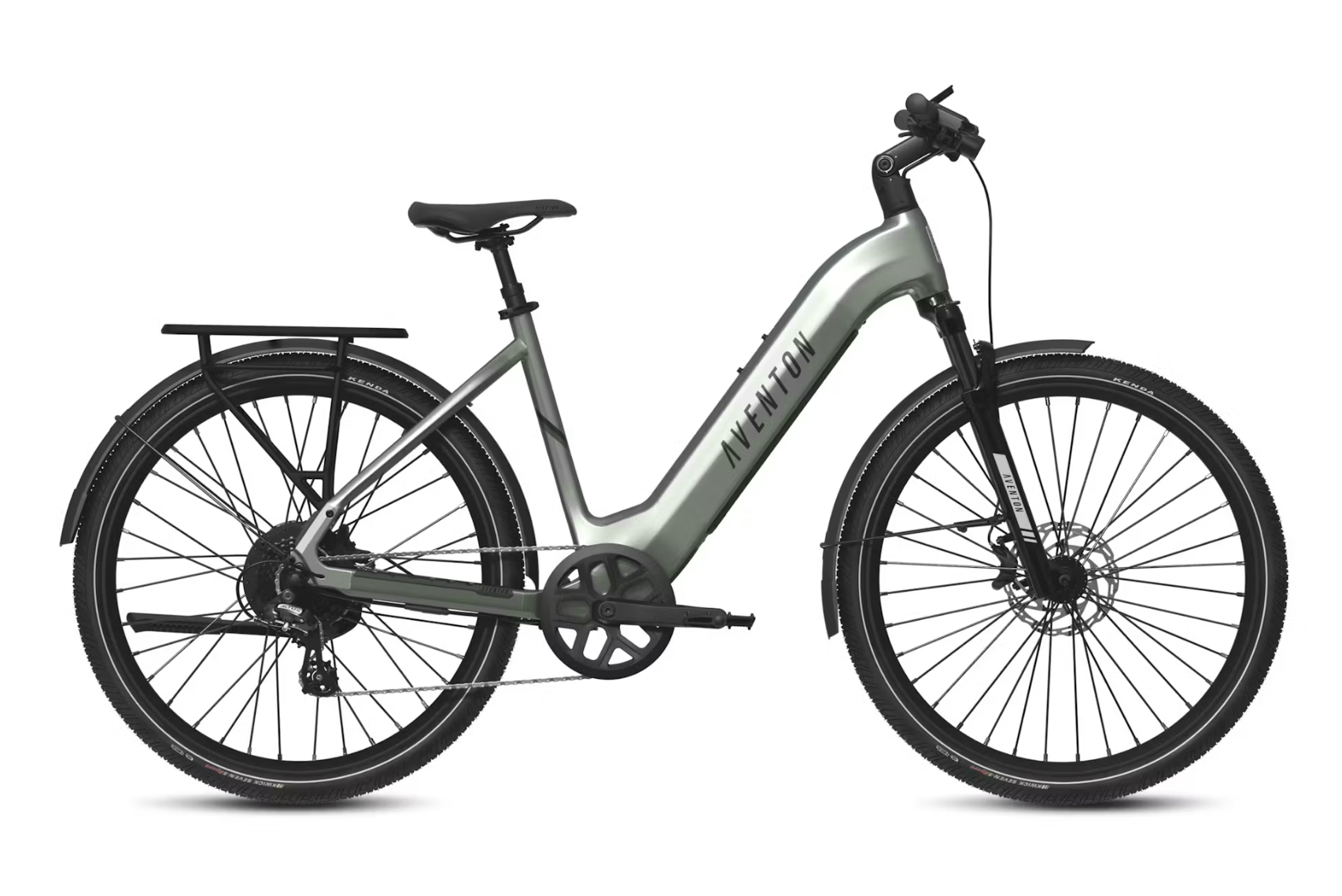

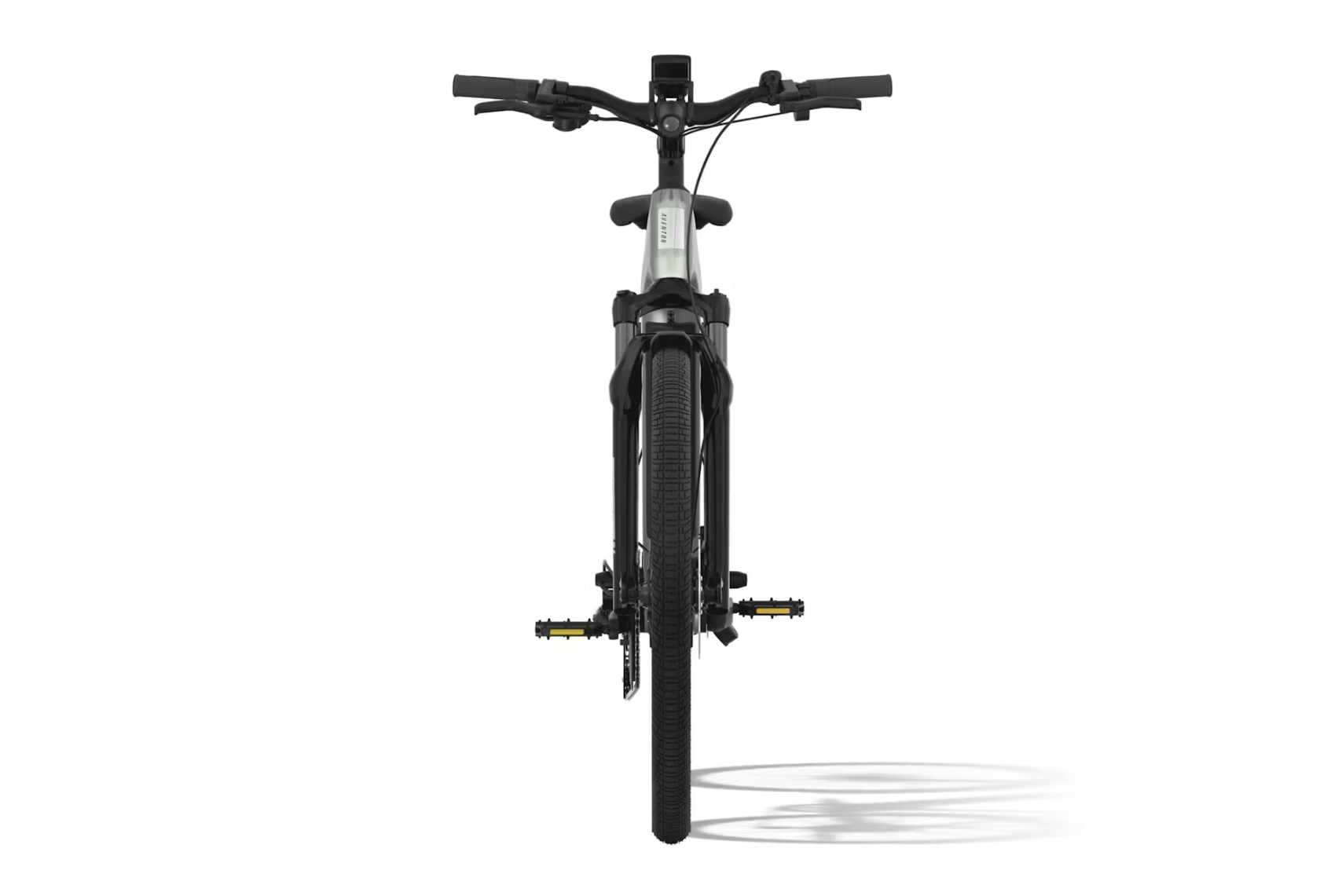

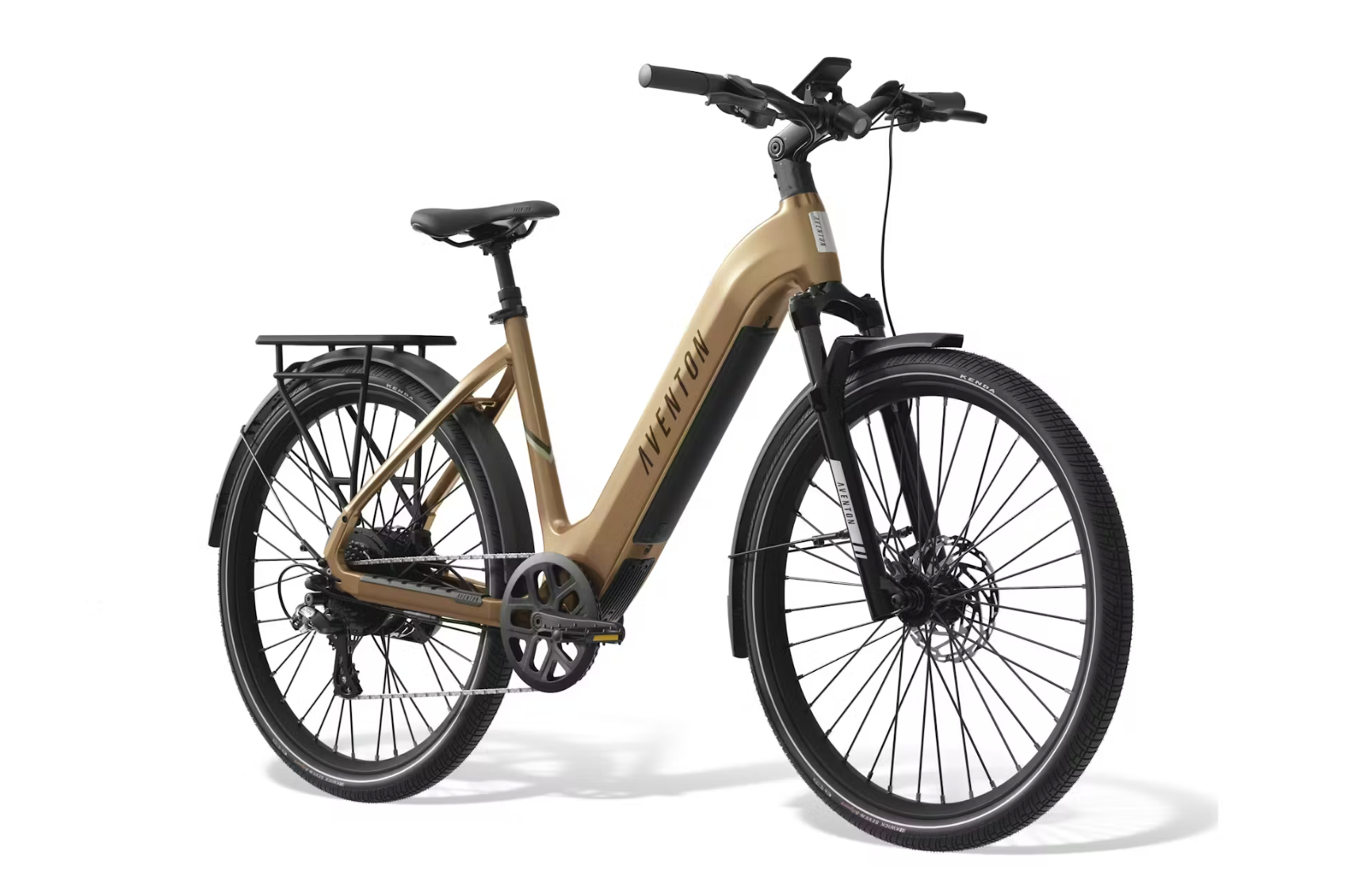

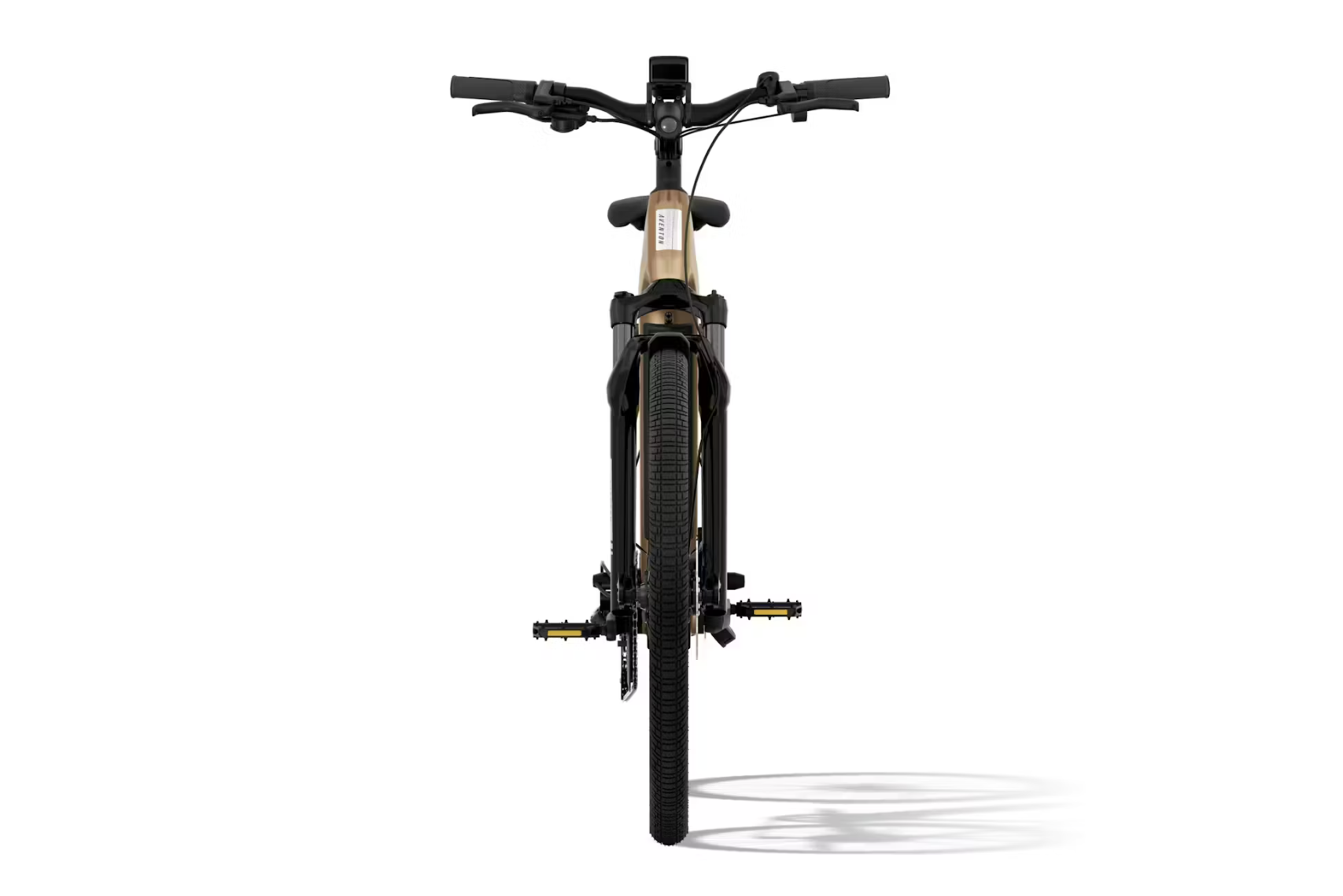

Level.3 Step-Through Commuter Ebike
Easy to use commuter ebike with torque sensor.
-
General Info
Model
Level 3 Step-Through Ebike
Weight
67lbs
Total Weight Limit
300 lbs
Box Size
61"x13"x34"
Rider Height
4'11" - 6'1"
Ebike Class
Class 2 Ebike
Range
Up to 70 Miles
Battery Safety Certifications
Safety Certifications
Ideal Use
Commuting
Pedal Assist
3 Levels (with Ride Tune Customization)
Water Resistance
Bike - IPX5 // Components - IPX6
Frameset
Frame
6061 Aluminum, Gravity Cast Front Triangle
Fork
Aventon Suspension Fork, 80mm travel, w/ lockout,coil spring. 15x100mm thru-axle, 43mm offset
Rear Spacing
142mm
Fork Spacing
110mm
Frame Style
Step-Through
Wheelset
Front Wheel
27.5in, 13g, 36hole, double wall Aluminum, Thru axle, Schrader Valve, black
Rear Wheel
27.5in, 12g, 36hole, double wall Aluminum, Nutted Hub Drive Motor, Scharder Valve, black
Tires
Kenda Kwick Seven-5 Sport K1052-006 27.5 x 2.20
Ebike System
Motor
36V, 500W (sustained), 864W (peak)
Motor Torque
60Nm
Display
Aventon BC280
Battery
Removable Internal Lithium-ion. 36V, 20Ah, 733Wh, LG 21700 cells
Battery Weight
8.7lbs
Controller
36V, 24A
Throttle
Aventon LH Handlebar Mounted
Sensors
Double Sided Bottom Bracket Torque Sensor
Charger
36V Output: 42V/ 4A
Charging time from 0% to 100%
5 hours
Lights
Front and rear lights integrated
Speed
Class 2
Brakes
Front Brake
Magura AT-2 Hydraulic disc brake / Tektro HD-E3520 hydraulic disc brakes w/ EJ1 quick disconnect wire
Rear Brake
Magura AT-2 Hydraulic disc brake / Tektro HD-E3520 hydraulic disc brakes w/ EJ1 quick disconnect wire
Front Brake Rotor
Magura MDR-A 180mm 6 Bolt Rotor / Tektro 180mm 6 Bolt Rotor
Rear Brake Rotor
Magura MDR-A 180mm 6 Bolt Rotor / Tektro 180mm 6 Bolt Rotor
Drivetrain
Rear Derailleur
Shimano Altus RD-M310
Shifter
Shimano 8 Speed Trigger SL-M315-8R
Chain
7/8 speed 120L
Cassette
12-32T / 8 Speed Shimano CS HG200-8
Chainring
48T
Crankset
3pc, 170mm crank arm
Bottom Bracket
Square Taper, Sealed, double sided Torque Sensor 83mmx158.5mm
Pedals
9/16" Composite Platform
