General Info

Model

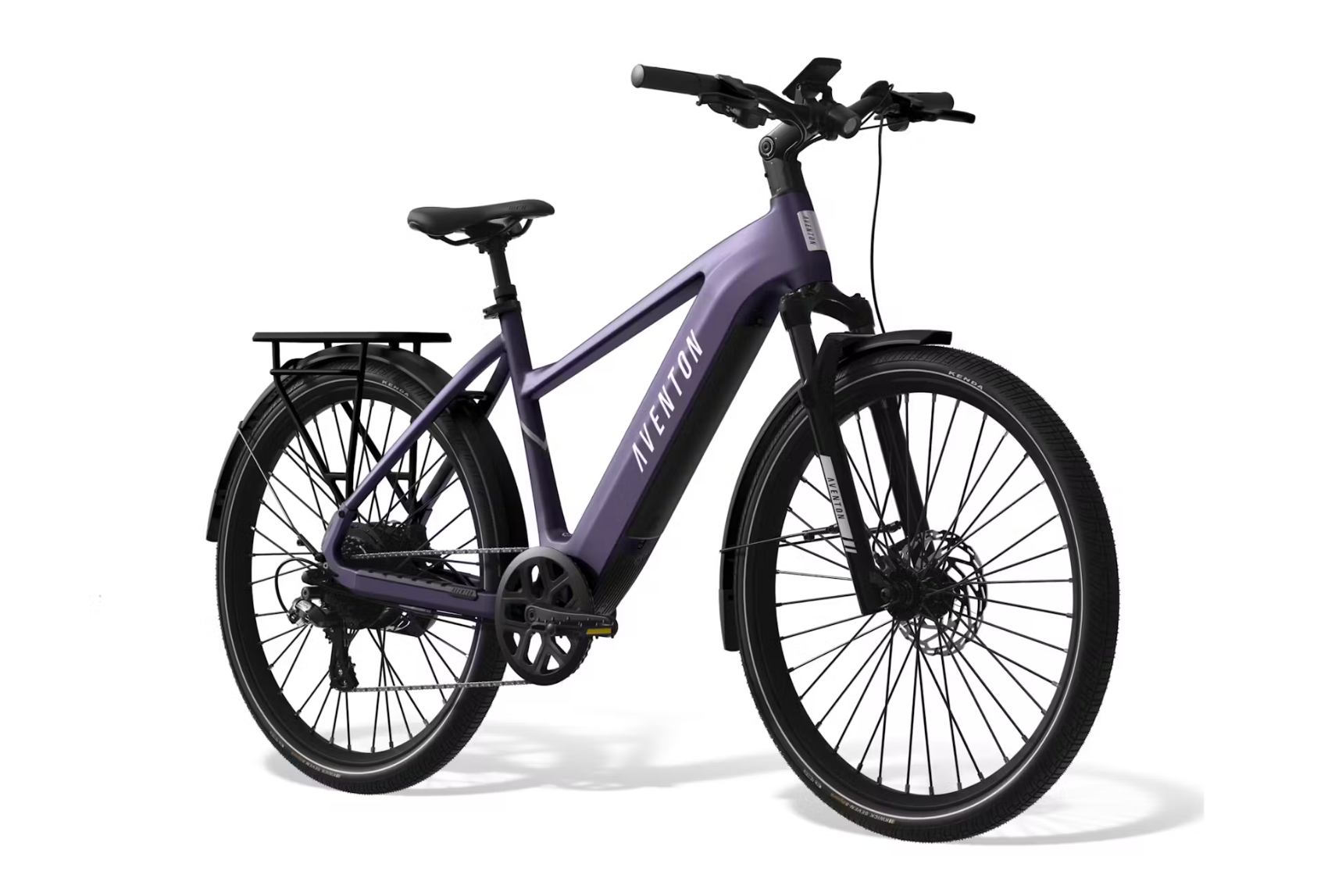

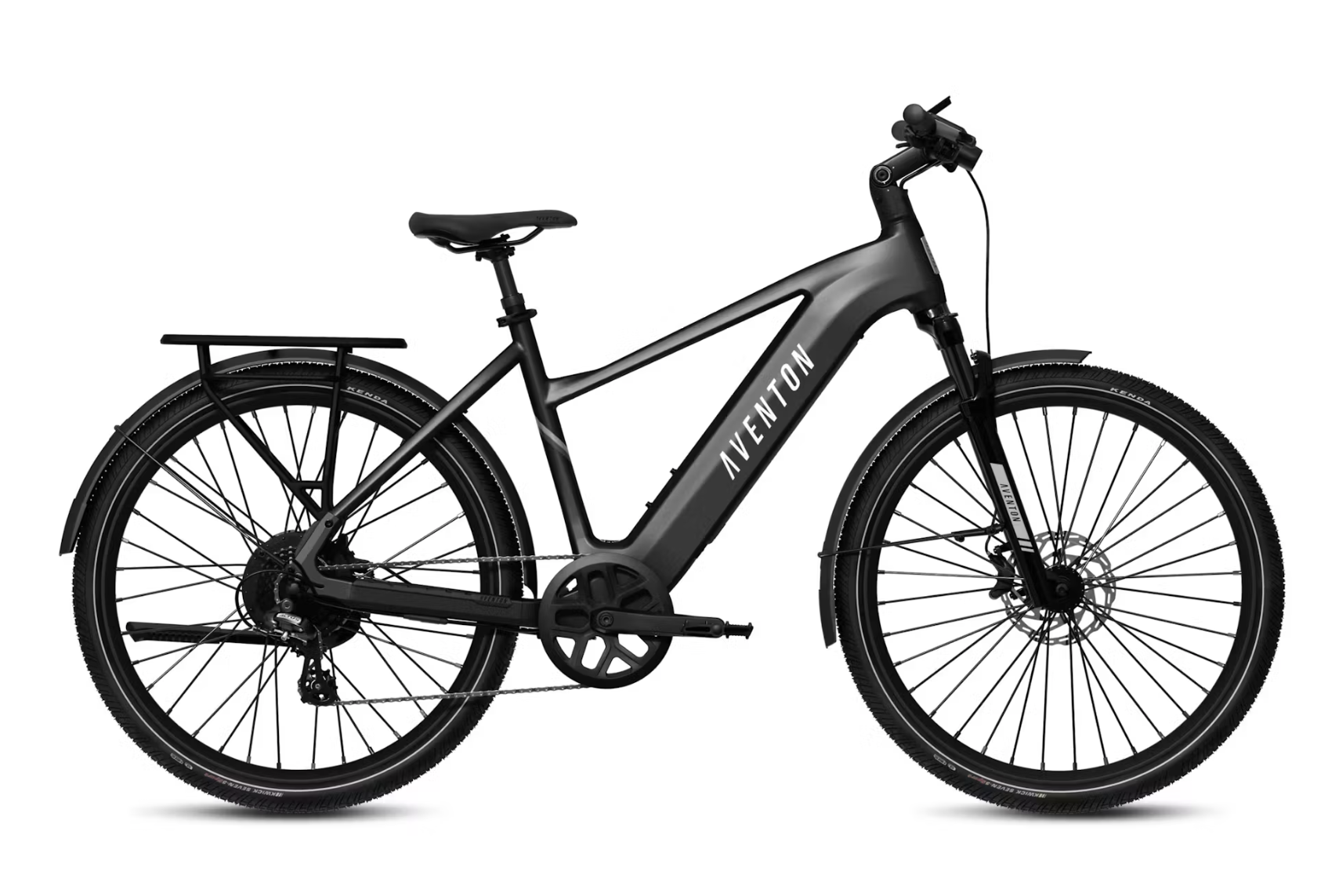

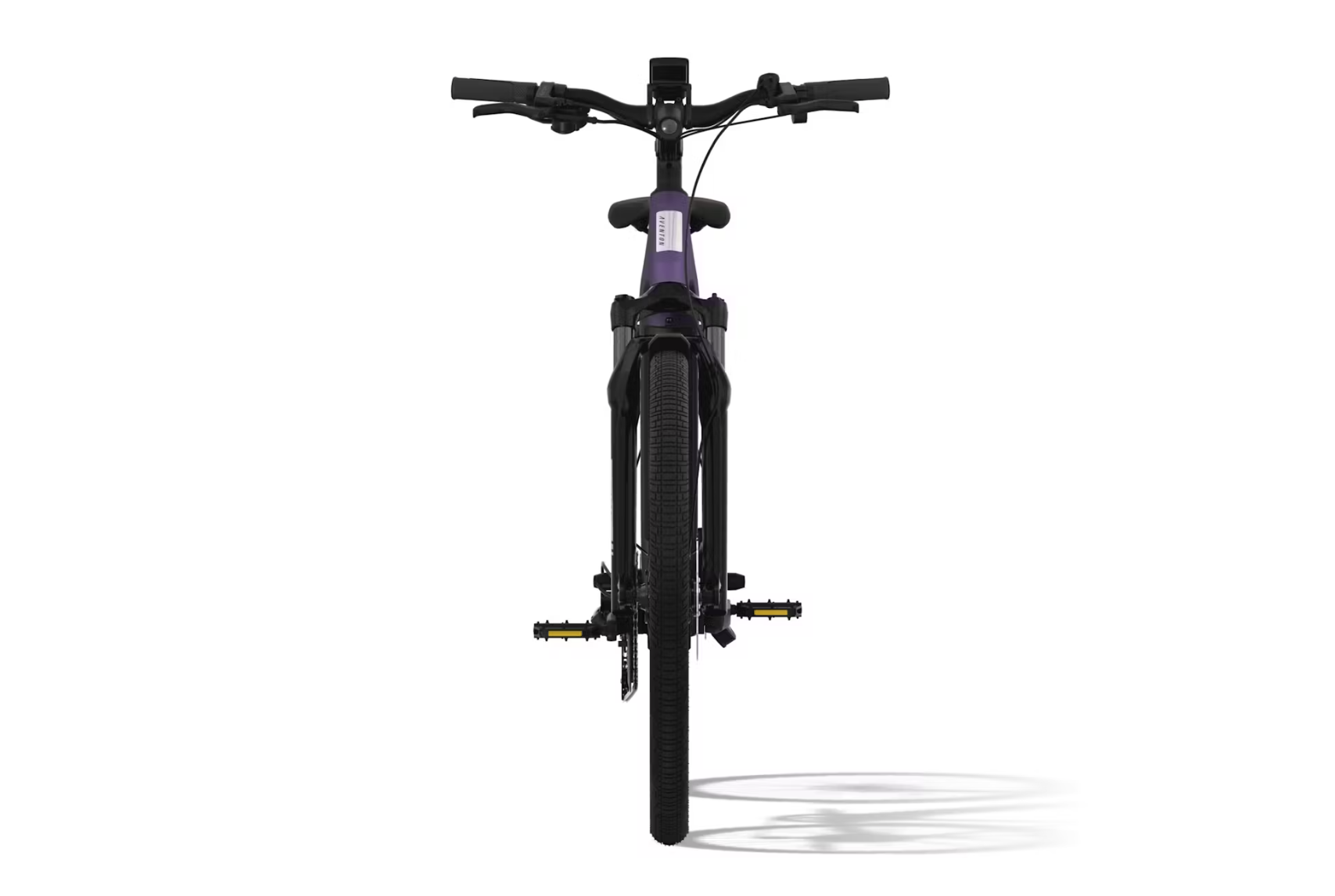

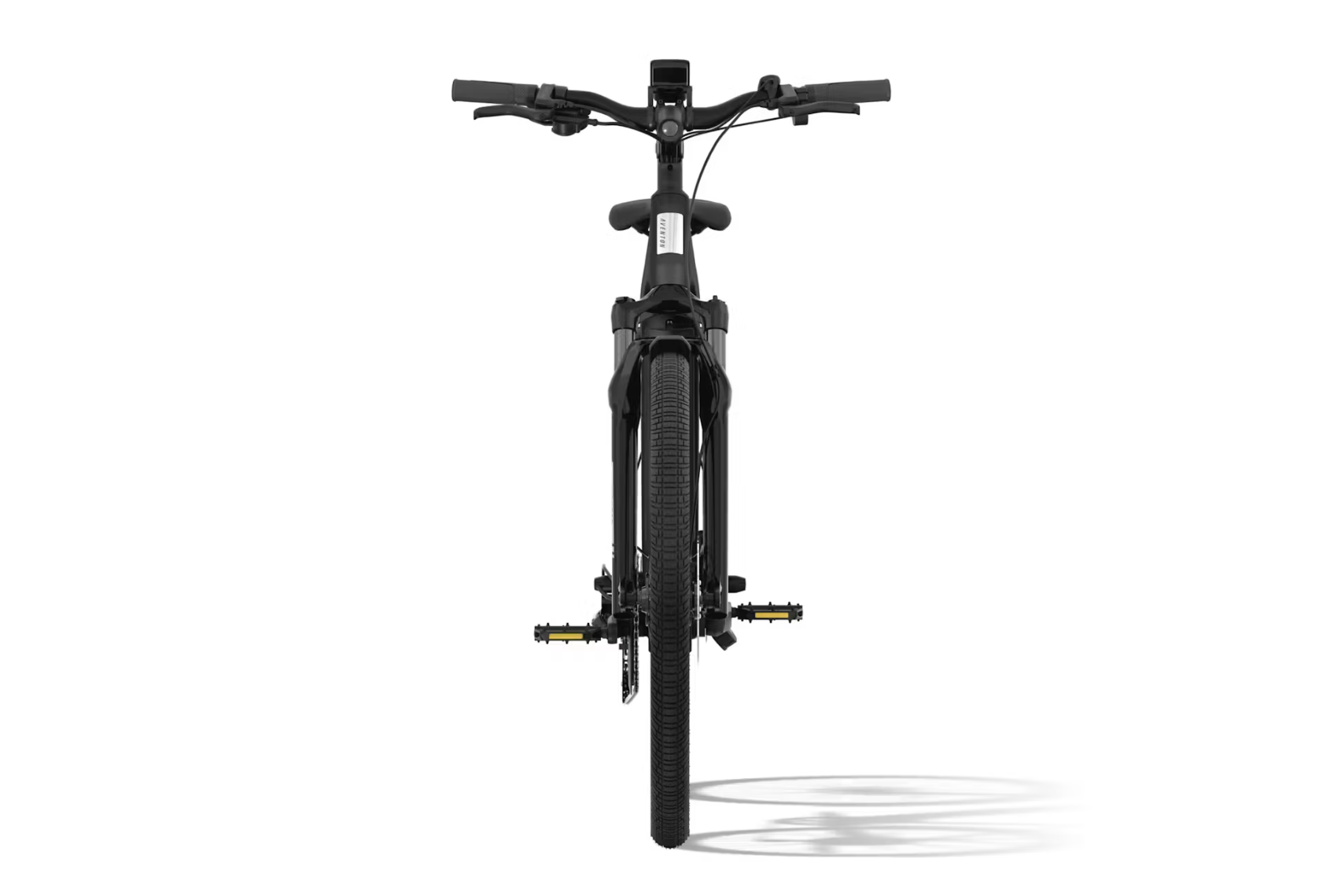

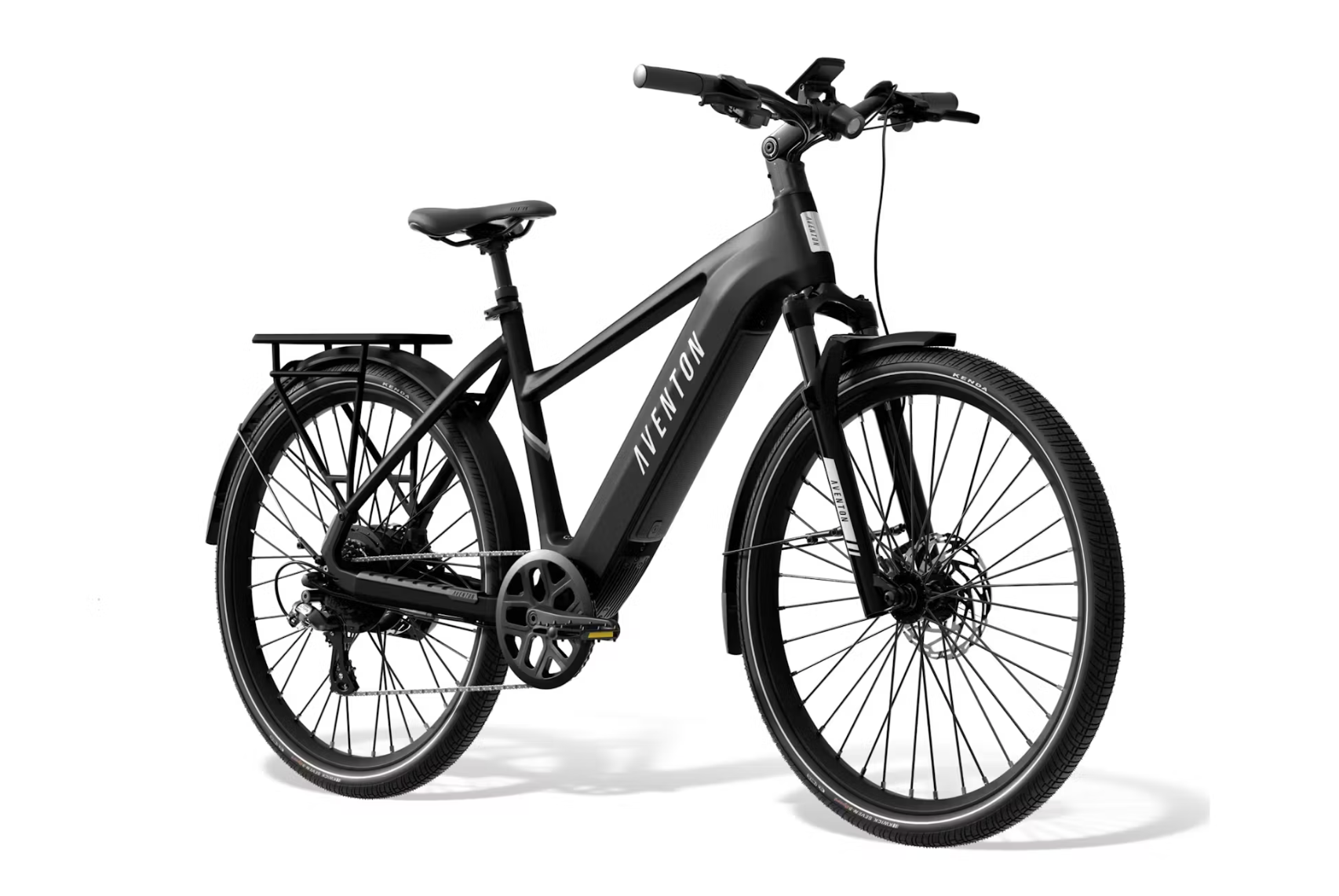

Level 3 Ebike

Weight

67lbs

Total Weight Limit

300 lbs

Box Size

61"x13"x34"

Rider Height

5'3" - 6'4"

Ebike Class

Class 2 Ebike

Range

Up to 70 Miles

Battery Safety Certifications

Certified to UL 2271

Safety Certifications

UL Safety Certified
UL 2849

Ideal Use

Commuting

Pedal Assist

3 Levels (with Ride Tune Customization)

Water Resistance

Bike - IPX5 // Components - IPX6

Frameset

Frame

6061 Aluminum, Gravity Cast Front Triangle

Fork

Aventon Suspension Fork, 80mm travel, w/ lockout,coil spring. 15x100mm thru-axle, 43mm offset

Rear Spacing

142mm

Fork Spacing

110mm

Frame Style

Step-Over

Wheelset

Front Wheel

27.5in, 13g, 36hole, double wall Aluminum, Thru axle, Schrader Valve, black

Rear Wheel

27.5in, 12g, 36hole, double wall Aluminum, Nutted Hub Drive Motor, Scharder Valve, black

Tires

Kenda Kwick Seven-5 Sport K1052-006 27.5 x 2.20

Ebike System

Motor

36V, 500W (sustained), 864W (peak)

Motor Torque

60Nm

Display

Aventon BC280

Battery

Removable Internal Lithium-ion. 36V, 20Ah, 733Wh, LG 21700 cells

Battery Weight

8.7lbs

Controller

36V, 24A

Throttle

Aventon LH Handlebar Mounted

Sensors

Double Sided Bottom Bracket Torque Sensor

Charger

36V Output: 42V/ 4A

Charging time from 0% to 100%

5 hours

Lights

Front and rear lights integrated

Speed

Class 2

Brakes

Front Brake

Magura AT-2 Hydraulic disc brake / Tektro HD-E3520 hydraulic disc brakes w/ EJ1 quick disconnect wire

Rear Brake

Magura AT-2 Hydraulic disc brake / Tektro HD-E3520 hydraulic disc brakes w/ EJ1 quick disconnect wire

Front Brake Rotor

Magura MDR-A 180mm 6 Bolt Rotor / Tektro 180mm 6 Bolt Rotor

Rear Brake Rotor

Magura MDR-A 180mm 6 Bolt Rotor / Tektro 180mm 6 Bolt Rotor

Drivetrain

Rear Derailleur

Shimano Altus RD-M310

Shifter

Shimano 8 Speed Trigger SL-M315-8R

Chain

7/8 speed 120L

Cassette

12-32T / 8 Speed Shimano CS HG200-8

Chainring

48T

Crankset

3pc, 170mm crank arm

Bottom Bracket

Square Taper, Sealed, double sided Torque Sensor 83mmx158.5mm

Pedals

9/16" Composite Platform

Cockpit

Saddle

Aventon Saddle

Seatpost

30.9mm Aventon Suspension Seatpost with 50mm travel

Seatpost Clamp

34.9mm

Handlebars

Aluminum 31.8mm, 680mm

Grips

Aventon Lock on grips

Headset

Sealed Bearing Headset
