General Info

Model

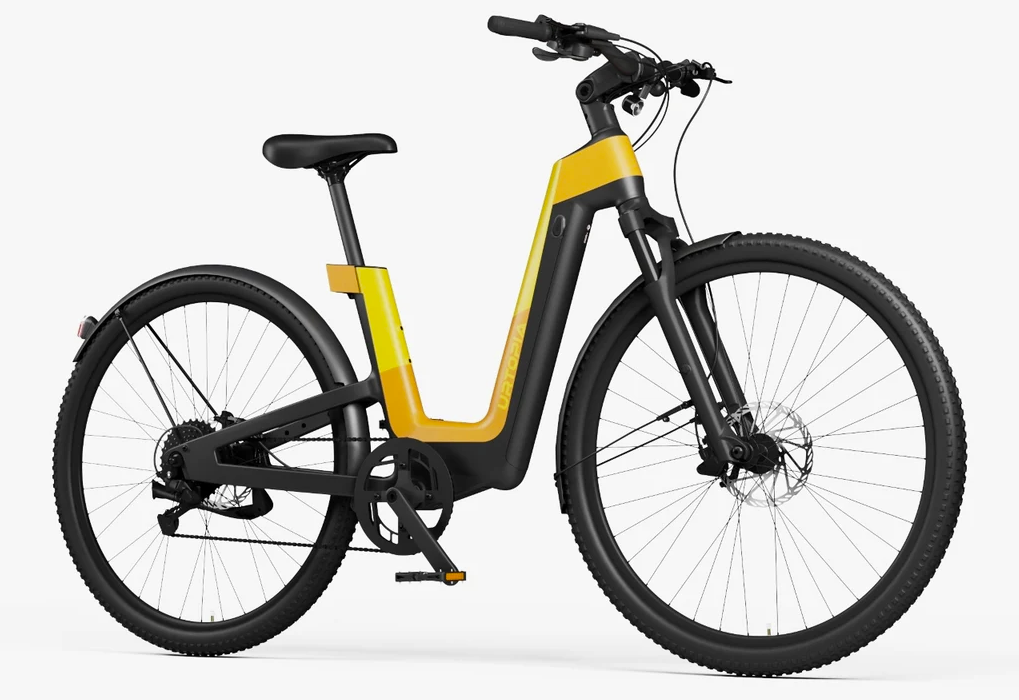

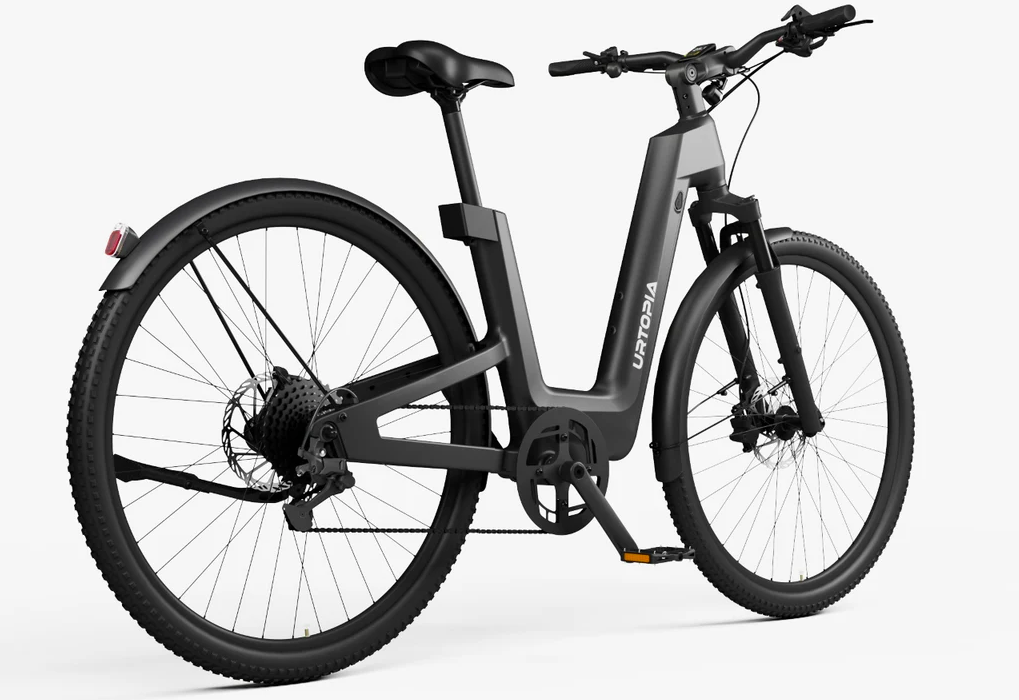

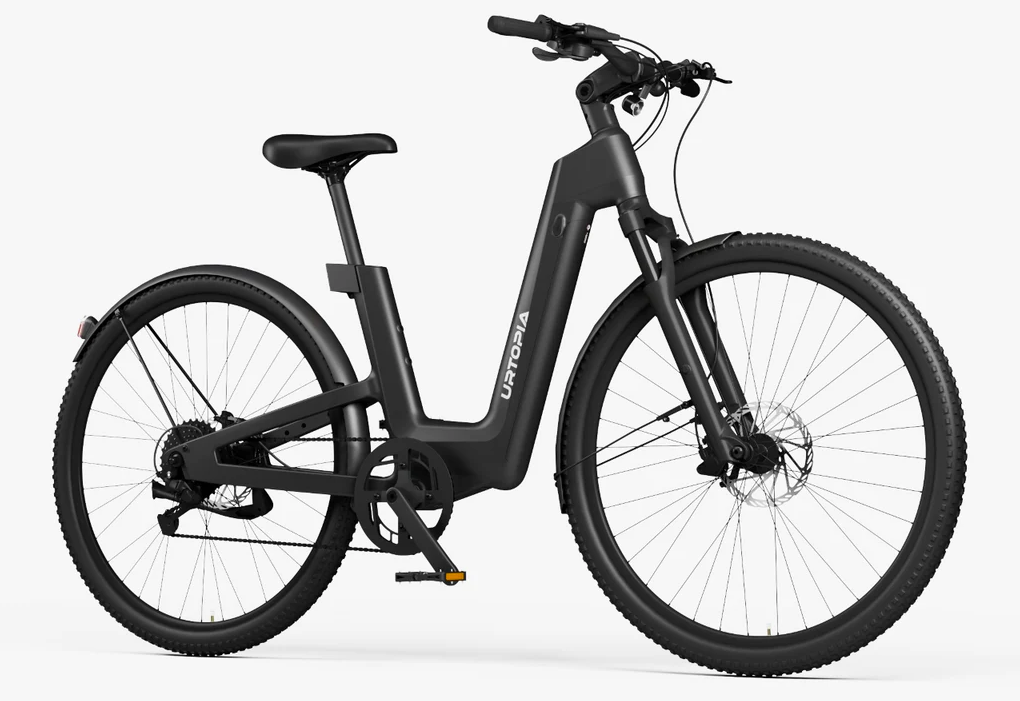

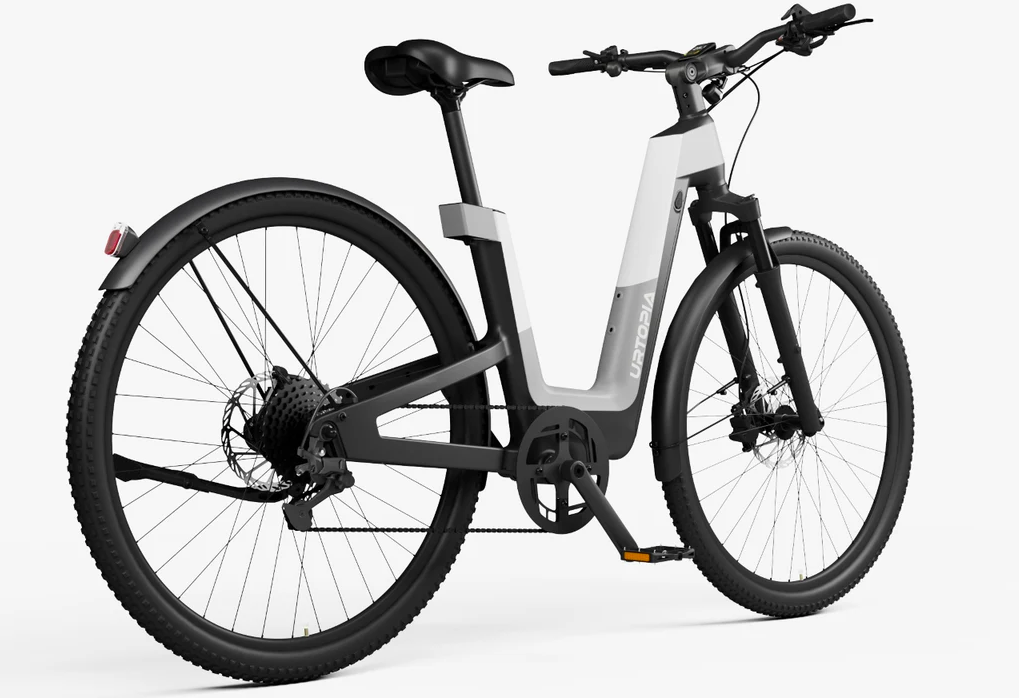

Carbon Fusion Pro Long range eBike

Net Weight

48lbs w/o acc.

Material

Carbon fiber frame

Range

Up to 75 miles

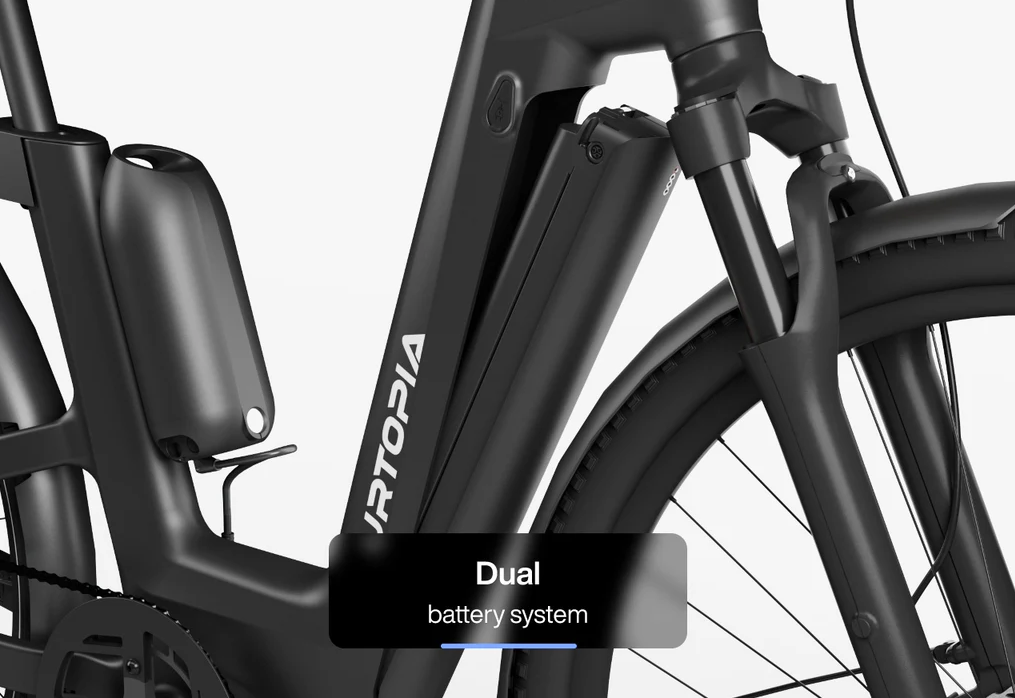

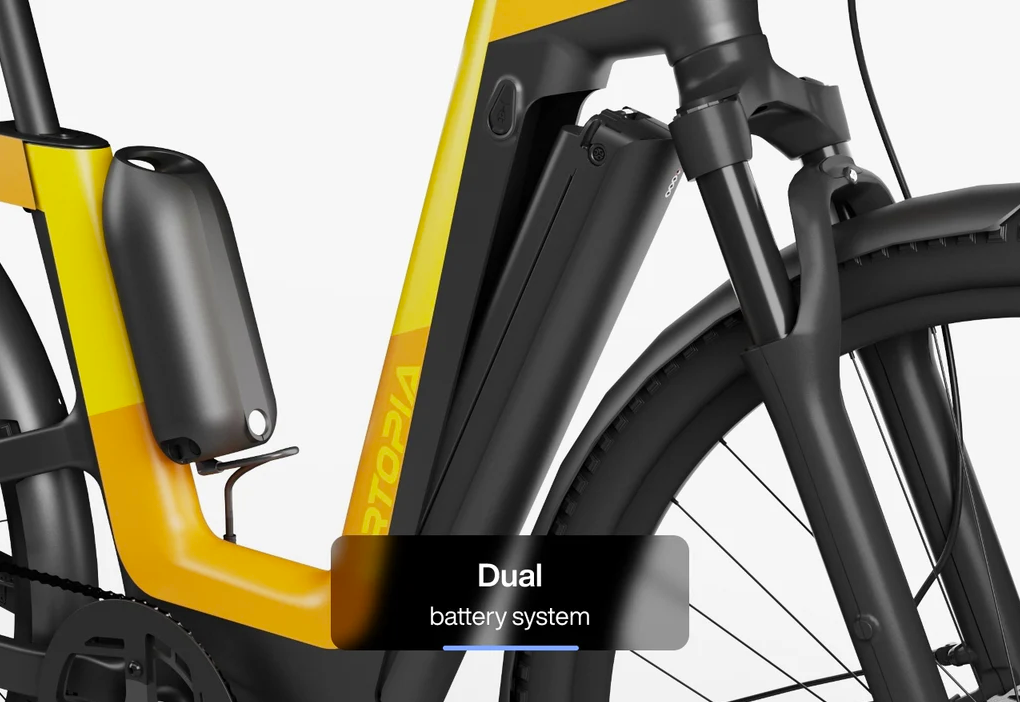

Extended to 120miles (Dual battery)
*The 75-mile range was tested with a 180 lb rider, riding in ECO mode on flat roads without throttle.

Top Speed

20mph by default, 25mph upon unlock

Total Weight Limit

330 lbs

Rider Height

5’3’’ - 6’3’’

Brakes

TEKTRO hydraulic disc brakes with power cut-off sensor

Wheels

Kenda 29’’×2.05’’, puncture-proof tire

Water Resistance

IP65

Ebike System

Class

Class 2 by default
Class 3 upon unlock

Motor

1000W (peak) rear hub, 60Nm

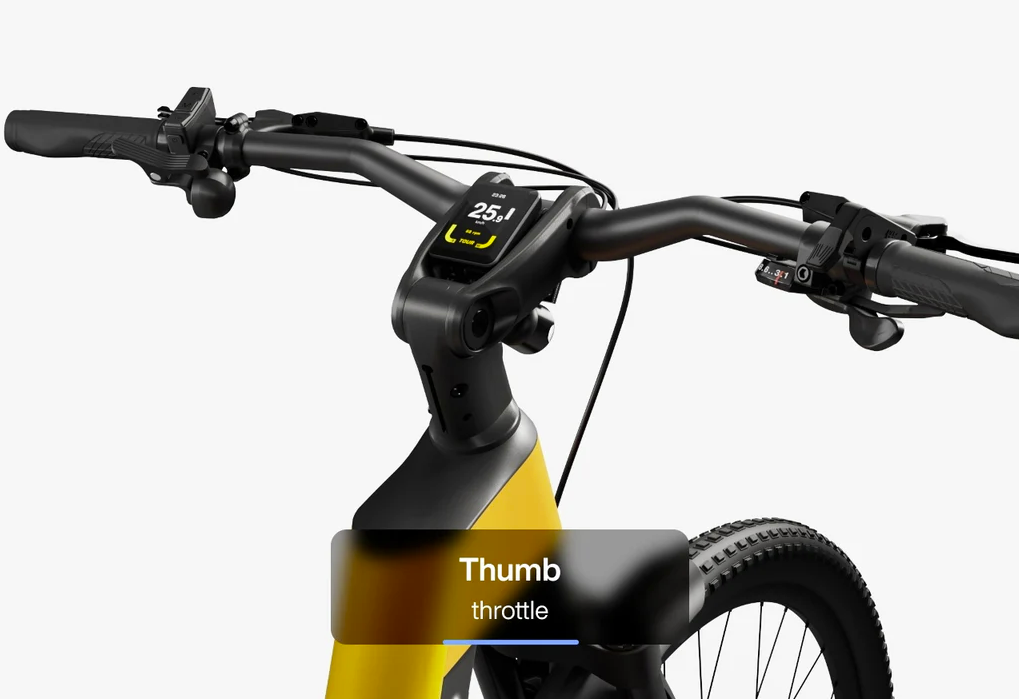

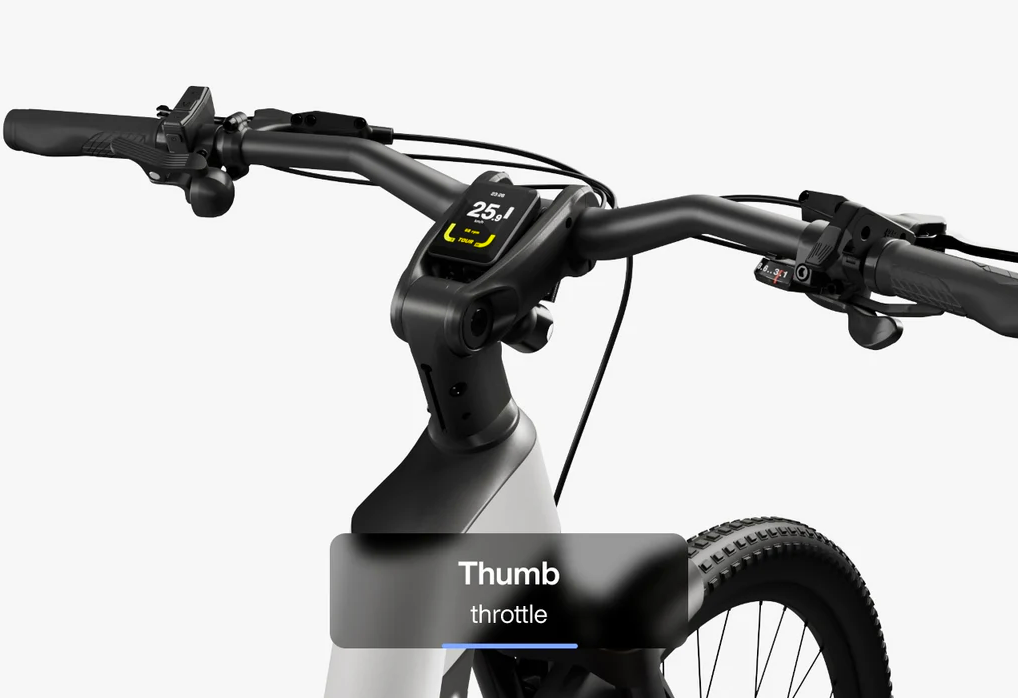

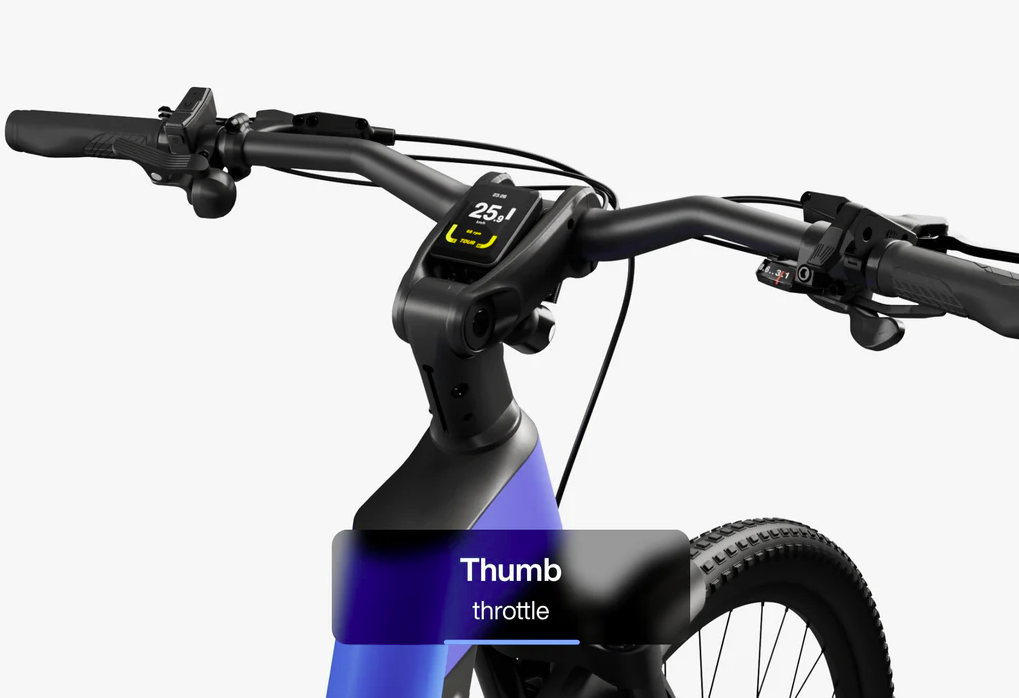

Throttle

Yes (up to 20mph)

Battery

529.2Wh battery, certified to UL-2271, removable battery

Pedal Assist

4 levels

Charger

3.5H fast charger

Sensors

Torque sensor

Lights

Front: External front light, 40 Lux
Rear: StVZO rear light (Not ARES lights)

Display

LCD Color display

Drivetrain

Chainrings

44T

Crankset

Aluminum alloy, 170mm

Cassette

11-40T, 8 Speed

Chain

YBN S8e, Silver

Rear Derailleur

Shimano ACERA 8-Speed

Shift Lever

8 Speed Trigger

Pedals

9/16' Alloy Platform

Cockpit

Handlebar

Aluminum, extender 0-60° adjustable

Fork

ZOOM 188NS AMS 700C Suspension fork 60mm travel

Grips

Durable ergonomic Grips, lockable

Seat Post

Aluminum Alloy, φ31.6mm
