General Info

Model

Carbon Folding Step-Thru E-Bike

Net Weight

31 lbs w/o acc.

Material

Carbon fiber (frame, fork)

Range

Up to 50 miles
*The 50-mile range was tested with a 180 lb rider, riding in ECO mode on flat roads without throttle.

Top Speed

20 mph

Total Weight Limit

220 lbs

Rider Height

4’11’’ - 6’5’’

Brakes

TEKTRO hydraulic disc brake

Wheels

Kenda 20’’ x 1.95’’

Ebike System

Class

Class 2

Motor

Peak 500W hub motor, 42Nm

Throttle

Optional (up to 20 mph)

Battery

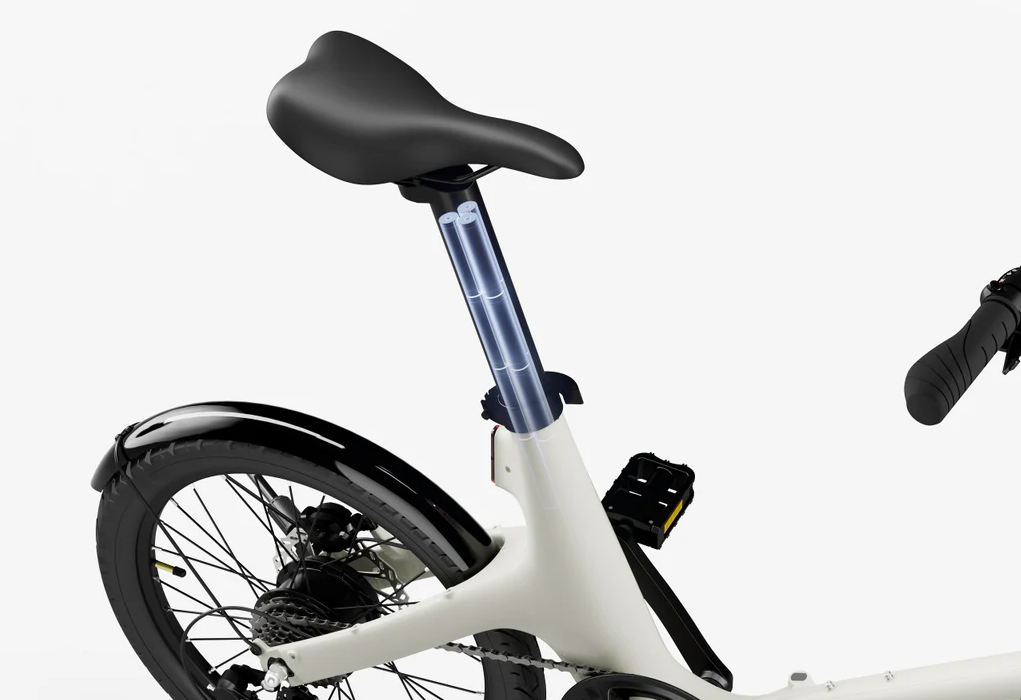

252Wh seat post battery, certified to UL-2271, removable battery

Pedal Assist

4 levels

Charger

3.5hrs fast charger

Display

2’’ Color display

Sensors

Torque sensor

Lights

Front: External lights, 60 Lux
Rear: Integrated tail lights

Water Resistance

IP65

Drivetrain

Chainrings

52T

Cassette

14-28T, 7 Speed

Chain

Shimano 7 speed

Rear Derailleur

Shimano Tourney 7-Speed

Shift Lever

7 Speed Trigger
