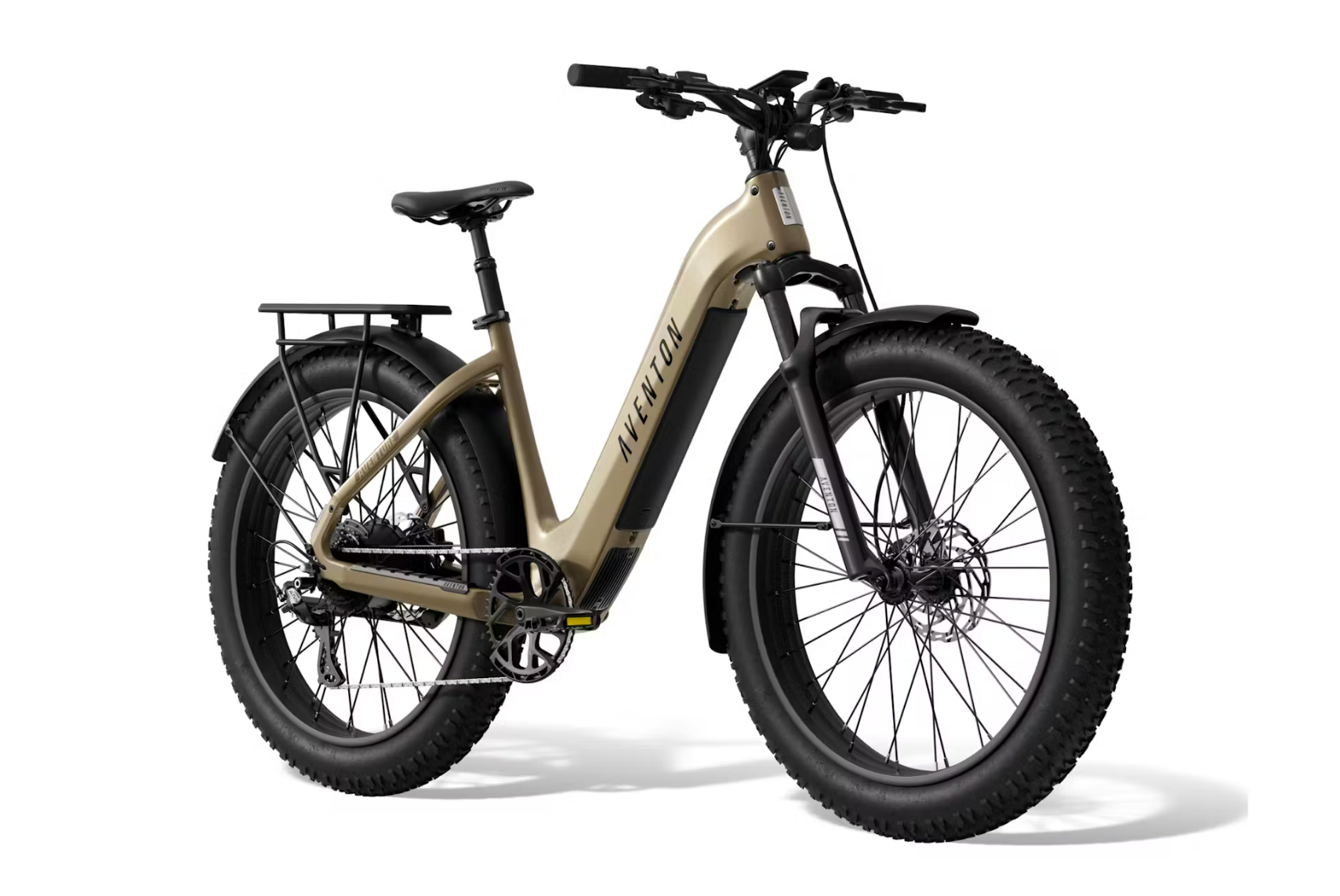

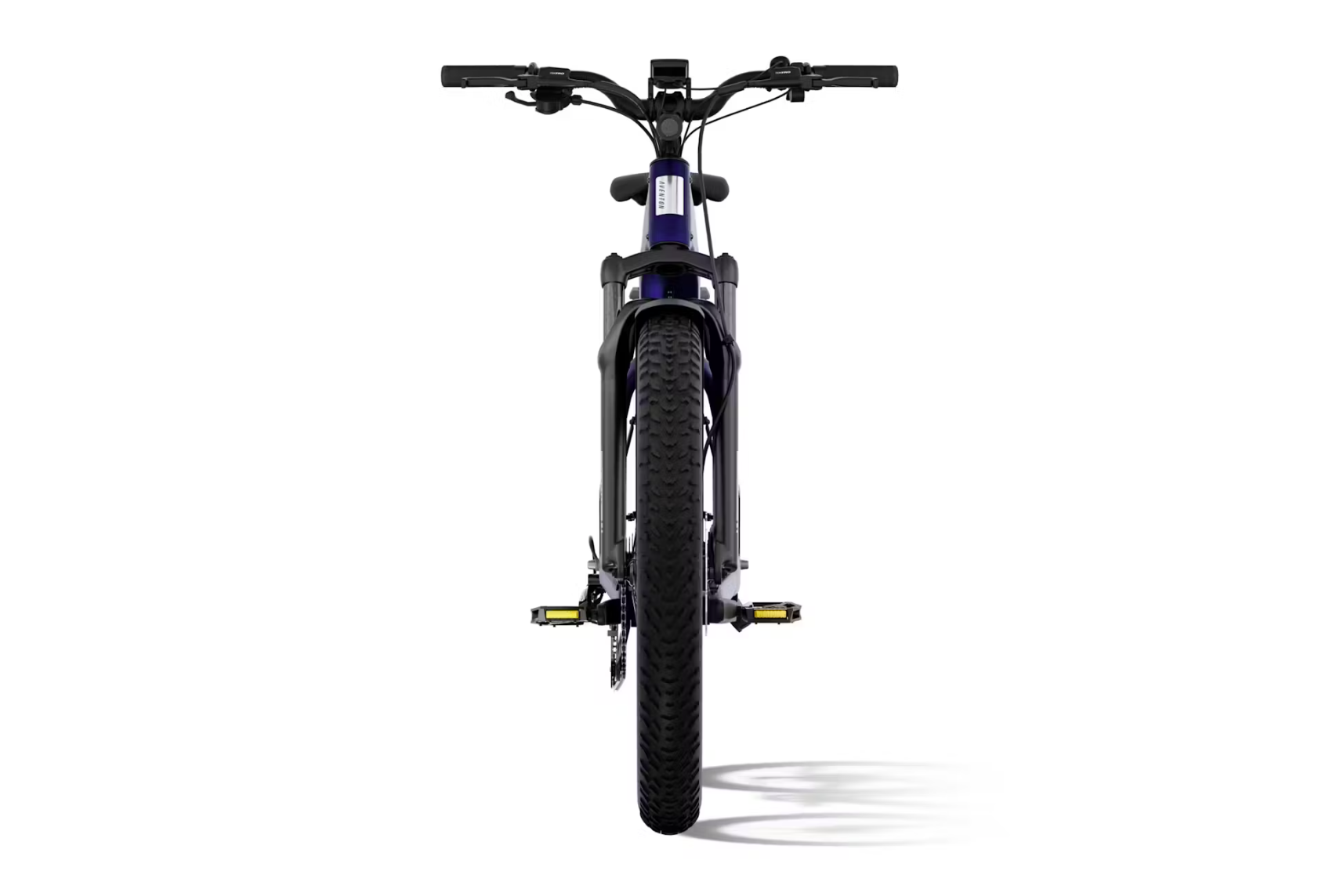

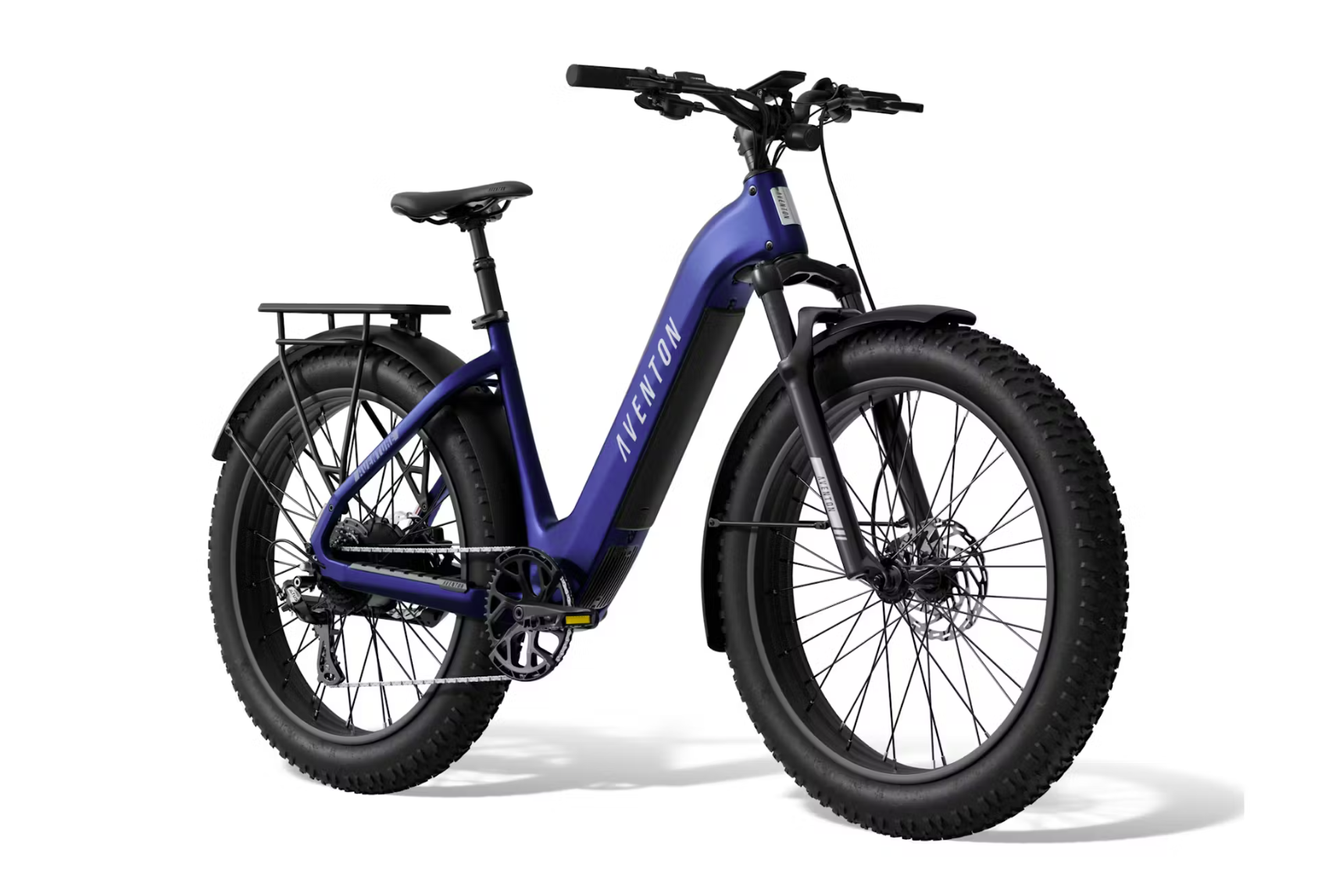

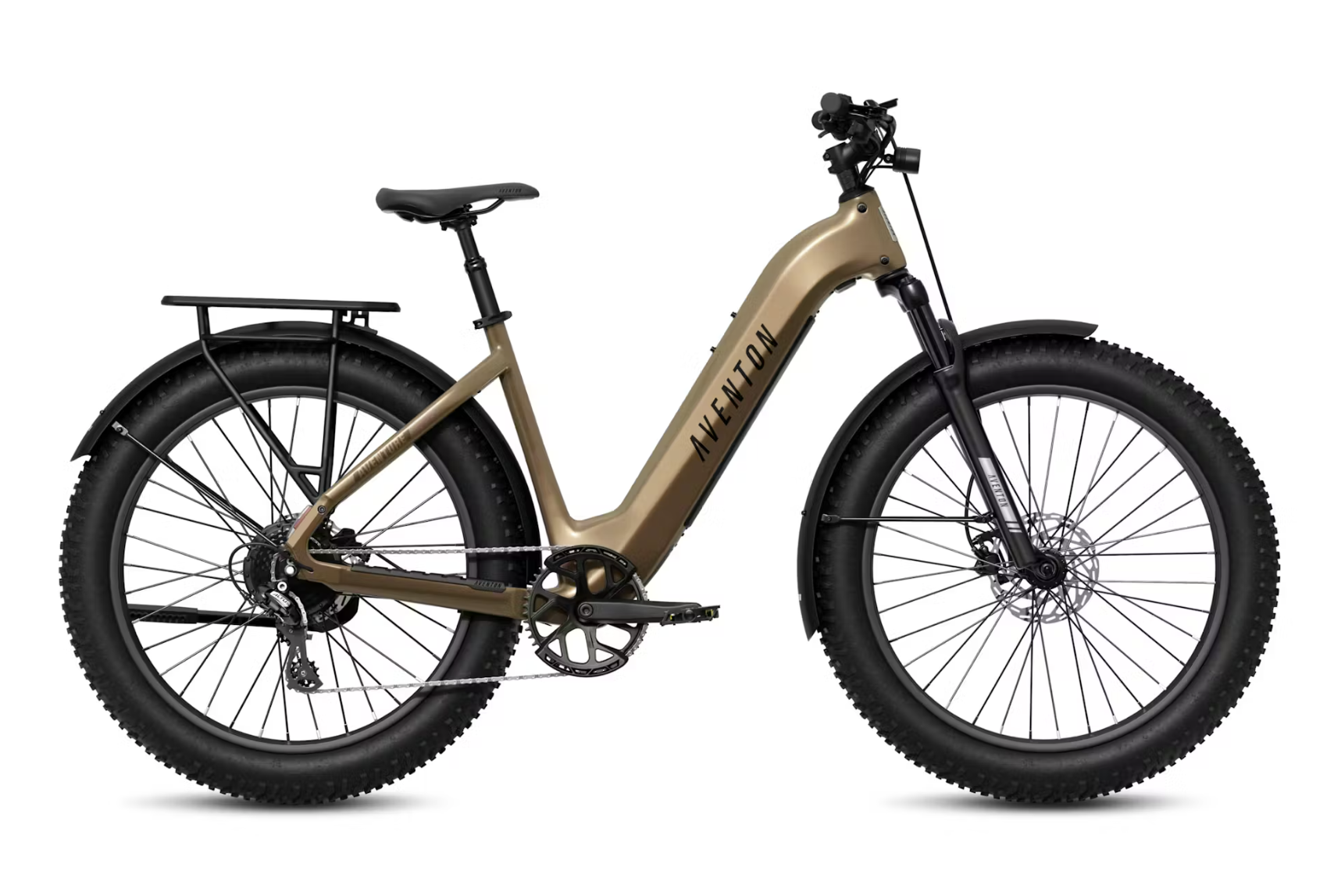

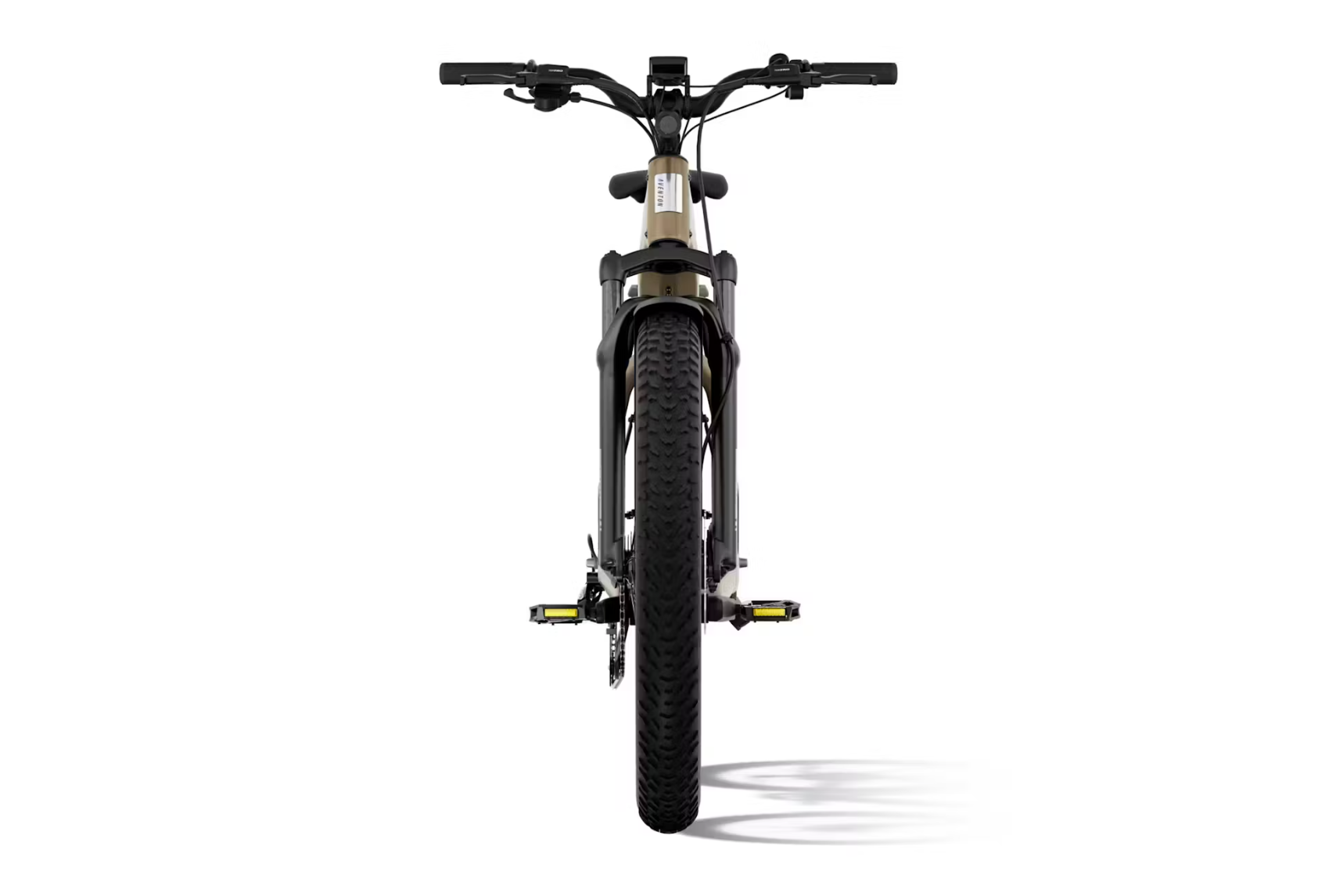

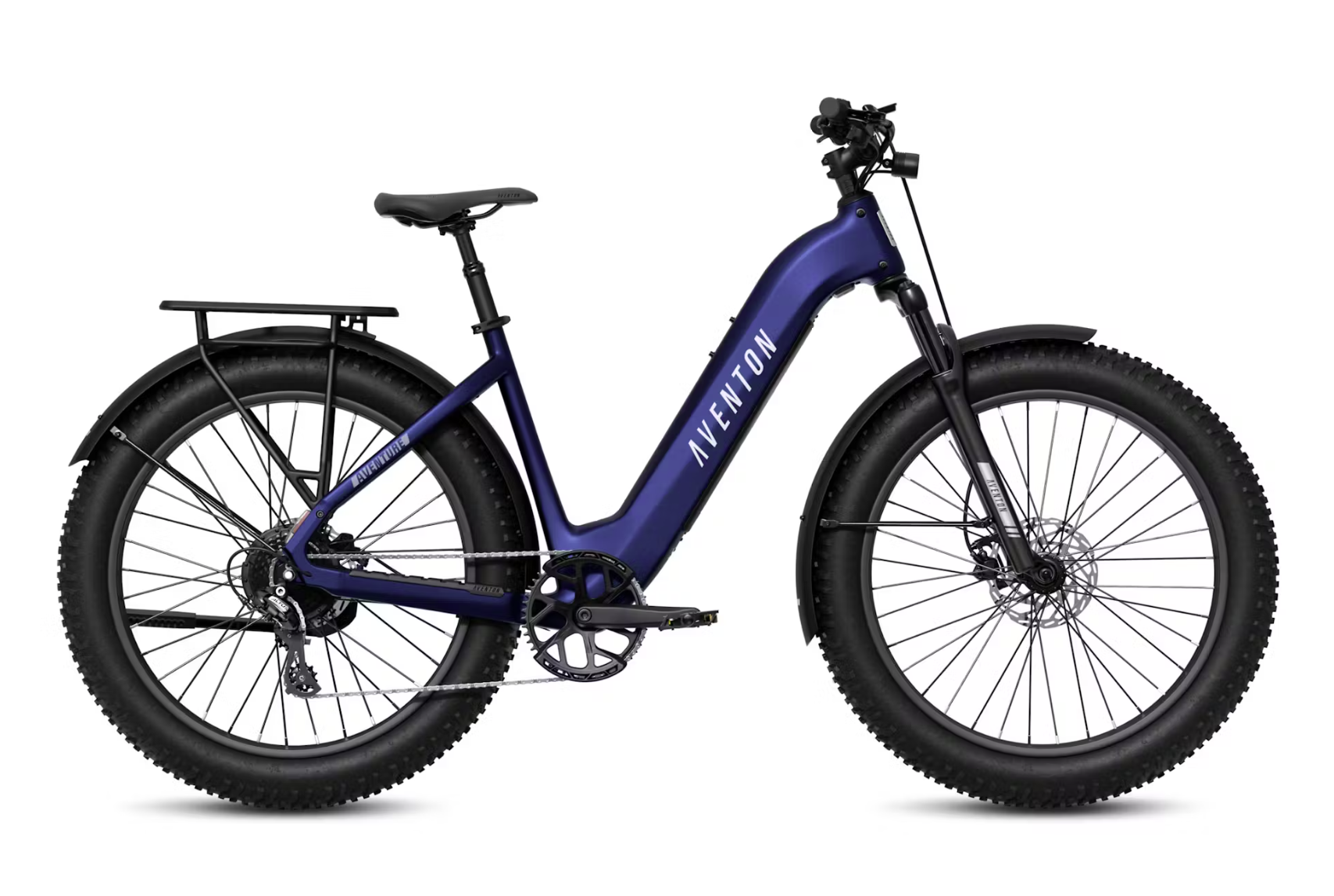

Aventure.3 Step-Through Ebike

For all your all-terrain adventures.



  • General Info

    Model

    Aventure 3 Step-Through Ebike

    Weight

    77 lbs

    Total Weight Limit

    400 lbs

    Rider Height

    R: 4'11" -5'7" | L: 5'7" - 6'1"

    Ebike Class

    Class 2 Ebike

    Range

    Up to 65 miles

    Battery Safety Certifications

    Certified to UL 2271

    Ideal Use

    All-Terrain

    Bike Safety Certifications

    UL Safety Certified
UL 2849

    Water Resistance

    Bike - IPX5 // Components - IPX6

    Pedal Assist

    3 Levels + Boost Mode (with Ride Tune Customization)

    Frameset

    Frame

    6061 Aluminum, Gravity Cast Front Triangle

    Fork

    Aventon/Zoom Suspension Fork, 80mm travel, with lockout

    Rear Spacing

    190mm

    Fork Spacing

    135mm

    Frame Style

    Step-Through

    Wheelset

    Front Wheel

    26", 36 hole, 13g, Double Wall Aluminum Fat Tire Rim, Nutted Axle, Schrader Valve

    Rear Wheel

    26", 36 hole, 12g, Double Wall Aluminum Fat Tire Rim, Nutted Hub Drive, Schrader Valve

    Tires

    Inova 26x4.0 puncture resistant

    Ebike System

    Speed

    Class 2

    Motor

    36V, 750W Hub Drive

    Motor Torque

    80Nm

    Motor Power

    750W (1188 Peak)

    Display

    Aventon BC280

    Battery

    Removable Internal Lithium-ion. 36V, 20Ah, 733Wh, LG 21700 cells

    Battery Weight

    8.7lbs

    Controller

    36V/33A

    Throttle

    Aventon LH Handlebar Mounted

    Sensors

    Double Sided Bottom Bracket Torque Sensor

    Charger

    36V Output: 42V/ 4A

    Charging time from 0% to 100%

    5 hours

    Lights

    Front and rear lights integrated

    Brakes

    Front Brake

    Tektro HD-E3520 hydraulic disc brakes w/ EJ1 quick disconnect wire

    Rear Brake

    Tektro HD-E3520 hydraulic disc brakes w/ EJ1 quick disconnect wire

    Front Brake Rotor

    Tektro 180mm 6 bolt

    Rear Brake Rotor

    Tektro 180mm 6 bolt

    Drivetrain

    Rear Derailleur

    Shimano Altus 8-Speed

    Shifter

    Shimano 8-Speed Trigger

    Chain

    7/8 Speed 118L

    Cassette

    12-32T / 8 Speed Shimano CS HG200-8

    Chainring

    48T

    Chainring BCD

    N/A

    Crankset

    3pc, 170mm crank arm

    Bottom Bracket

    100x177 Square Taper, Double Sided Torque sensor bottom bracket

    Pedals

    9/16" Alloy Platform

    Cockpit

    Saddle

    Aventon Saddle

    Seatpost

    Aventon Suspension Seatpost, Ø 30.9mm, 350mm Length. 50mm travel

    Seatpost Clamp

    34.9mm

    Handlebars

    Aluminum 31.8mm, 680mm

    Grips

    Aventon Lock on grips

    Headset

    Sealed bearing H887 Peilin 28.6mm * 56mm * 56mm H18.6mm 7pcs
