General Info

Model

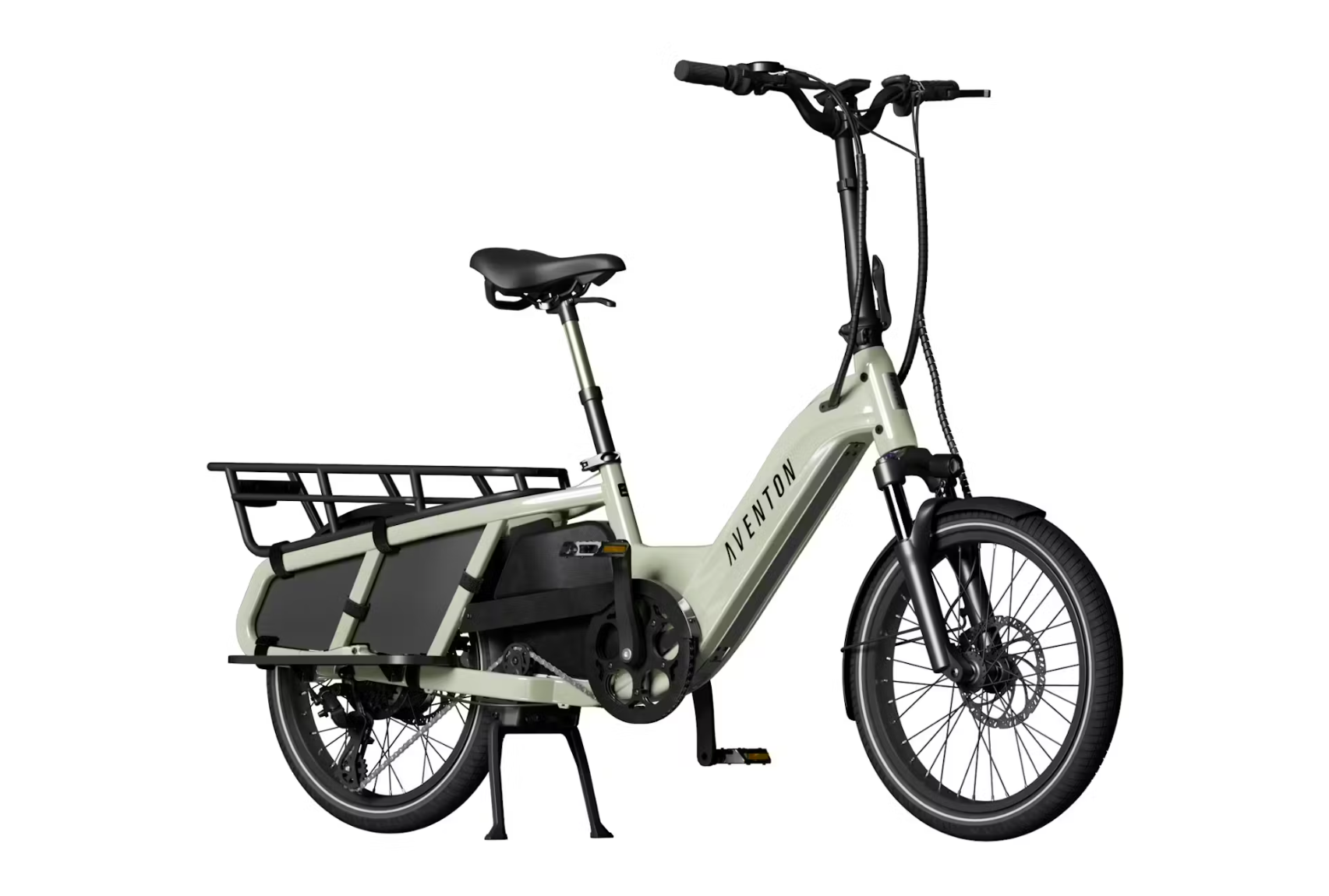

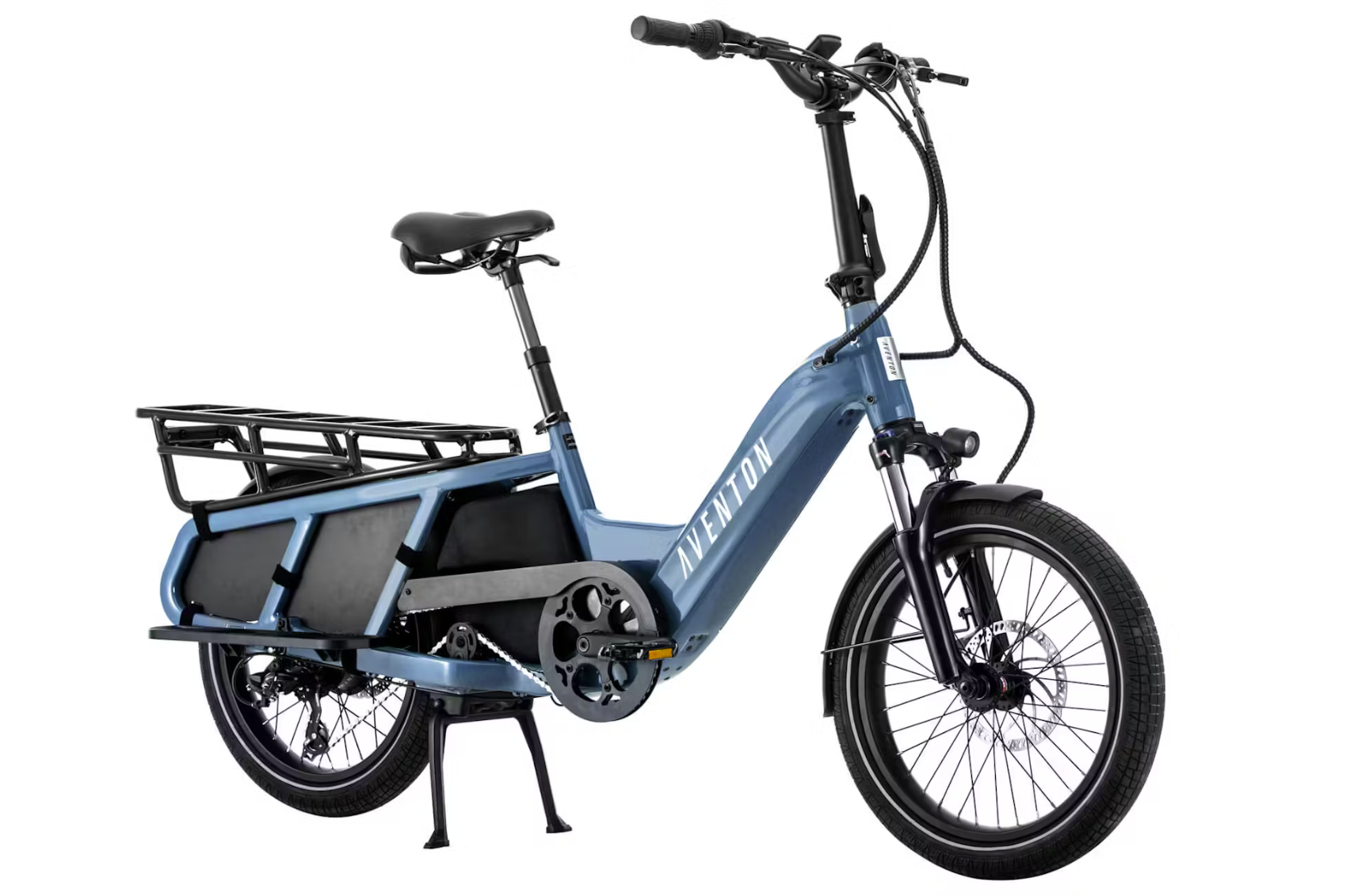

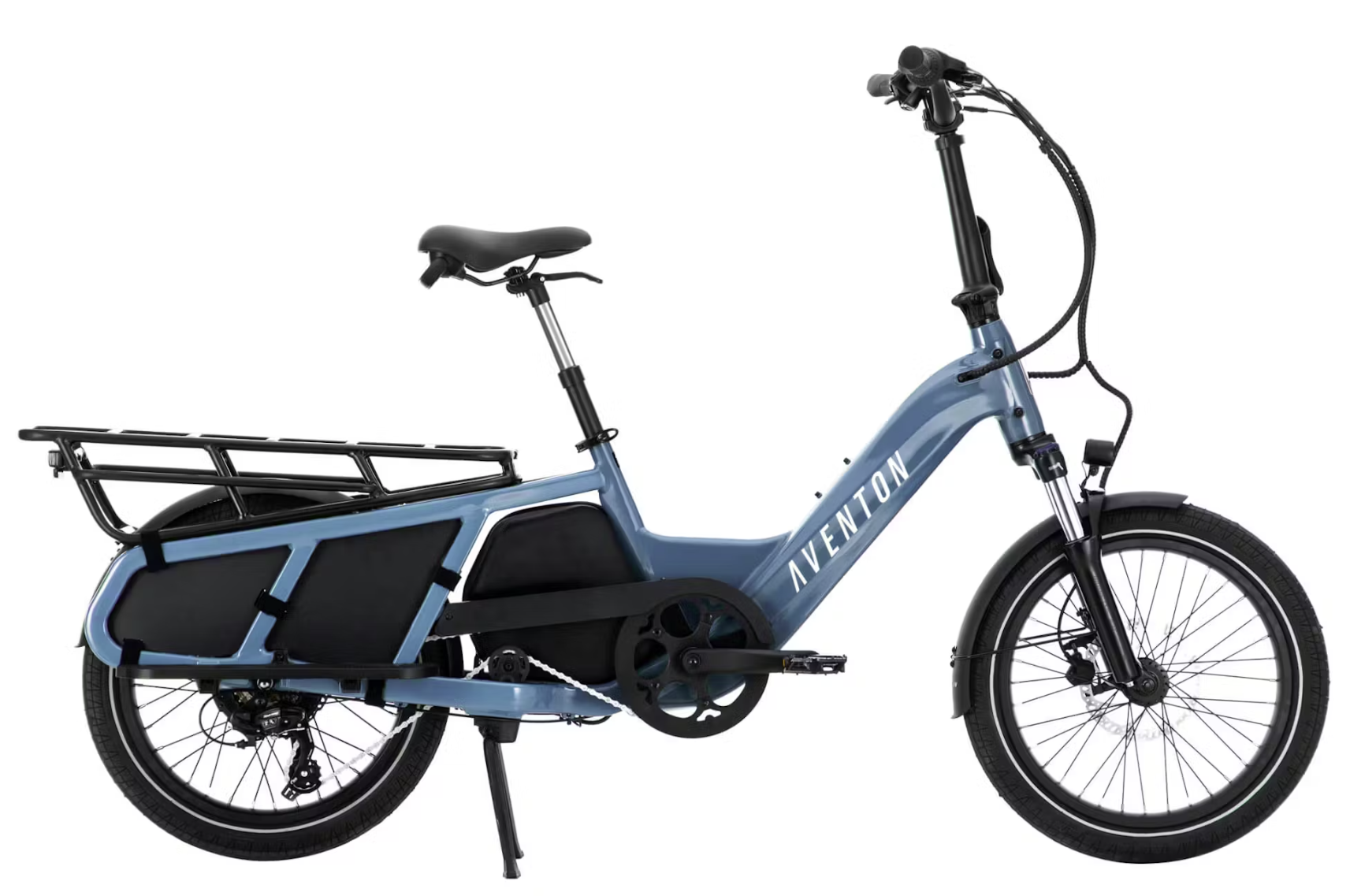

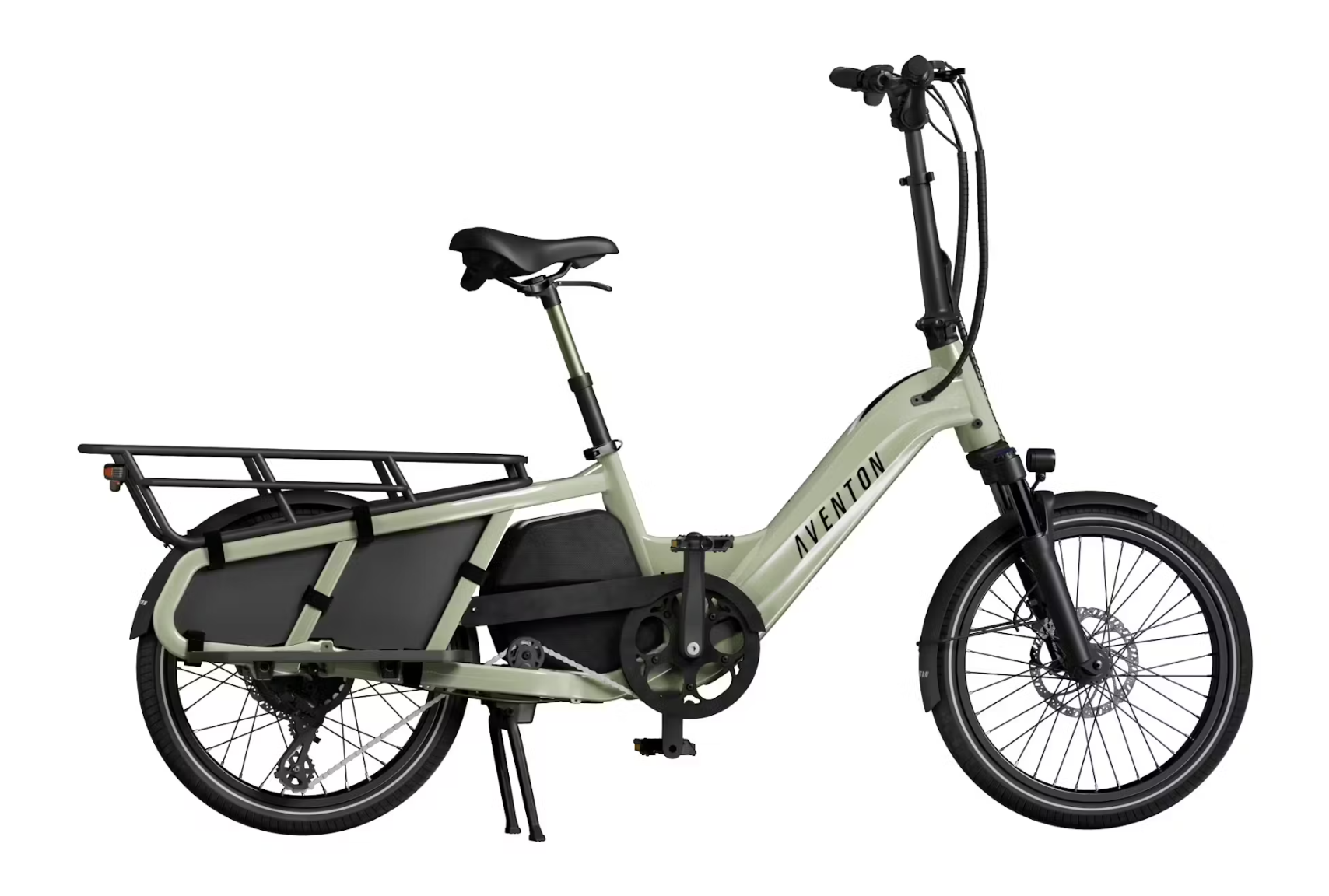

Abound Ebike

Pedal Assist

4 Levels

Range

Up to 50 miles

Total Weight Limit

440 lbs

Ideal Use

Cargo & Utility

Folding

No

Rider Height

4'11" - 6'3"

Weight

82 lbs

Safety Certifications

UL and TUV Safety Certified
UL 2849 / UL 2271

Water Resistance

IPX5

Frameset

Frame

Double-Butted Aluminum Alloy

Fork

Suspension Fork with 50mm travel, with lockout

Footboards

Aluminum

Frame Style

Step-Through

Wheelset

Rim

Double Wall Aluminum 36h Front & Rear

Tubes

Butyl Rubber, Schrader Valve

Hubs

36H Disc Nutted Front, Nutted Rear

Tires

20 x 2.4

Spokes

Black Stainless 13G Front / Iron 12G Rear

Ebike System

Throttle

Aventon LH Handlebar Mounted

Display

LCD Smart "Easy Read"

Sensors

Double Sided Bottom Bracket Torque Sensor

Charger

48V, 3 Amp Fast Charger

Lights

Front and rear lights integrated

Battery

Samsung 2100 cells, 48V, 14.4AH, 678.2Wh, UL UN38.3 MSDS certification

Speed

Class 2

Motor

48V, 750W sustained, 1200W peak brushless rear hub motor

Brakes

Brakes

Hydraulic

Drivetrain

Pedals

9/16" Alloy Platform

Bottom Bracket

Square Taper, Sealed, Torque Sensor

Crankset

170mm w/ 52 T

Rear Derailleur

Shimano 7 speed

Cassette

14-28T, 7 Speed

Shift Lever

7 Speed Twist

Chain

148 Link, 7 Speed

Cockpit

Saddle

Aventon Saddle

Seatpost

Dropper Seatpost, 30.9mm x 440mm

Stem

Folding, Height Adjustable, 31.8mm, 9 Degree Rise

Seat Clamp

34.9mm Quick Release

Handlebars

Aluminum 31.8mm, 700mm

Headset

Sealed Bearing Headset

Grips

Ergonomic Comfort

Included Accessories

Kickstand

Included, center mount

Frame Storage Bag

Polyester, EVA Waterproof

Rear Rack Weight Limit

143 lbs

Fenders

Included

Rear Rack

Included
